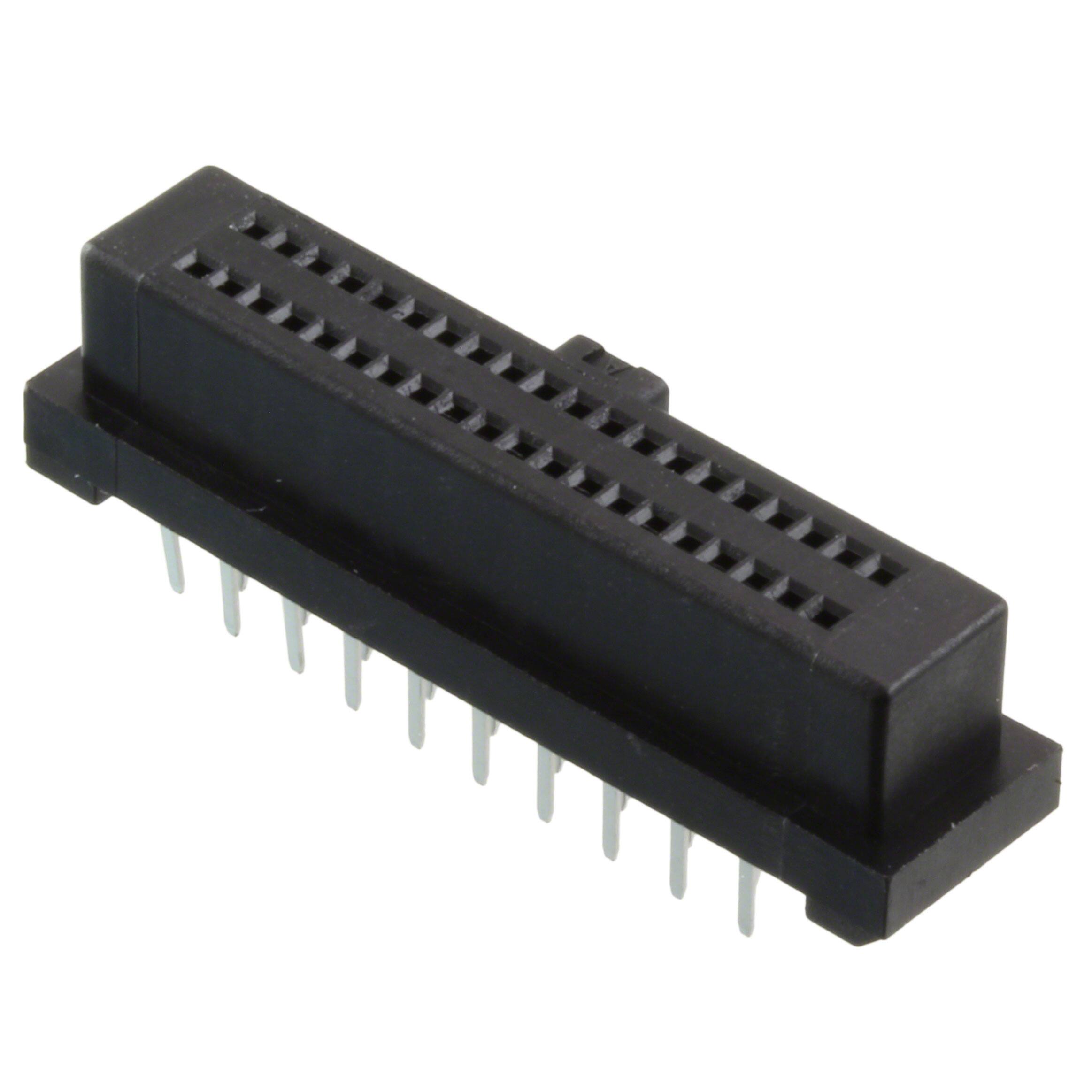

HIF6A-40DA-1.27DS(71)

Specifications

Montaj Tipi

Through Hole, Right Angle

Pitch Mating

0.050 1.27mm

Contact Length Post

0.118 3.00mm

Current Rating Amps

0.5A

Contact Shape

Square

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Height

0.335 8.51mm

Montaj

Through Hole

Row Spacing Mating

0.100 (2.54mm)

Number Of Conductors

ONE

Seri

HIF6

Fabrika Tedarik Süresi

10 Weeks

Orientation

Right Angle

Insulation Color

Black

Mil Conformance

NO

Number Of Pcb Rows

4

Insulation Resistance

1000000000Ohm

REACH Uyumluluk Kodu

unknown

Applications

General Purpose

Reference Standard

UL

Contact Materials

Copper Alloy

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Resistance

30mOhm

Contact Finish Mating

Gold

Sıra Sayısı

2

Pcb Contact Pattern

STAGGERED

Pcb Contact Row Spacing

1.905 mm

Nominal Gerilim

125VAC

Contact Finish Thickness Mating

8.00μin 0.203μm

Yükseklik

8.5mm

RoHS Durumu

RoHS Compliant

Özellikler

Polarizing Key

Parça Durumu

Active

Reliability

COMMERCIAL

Filter Feature

NO

Çalışma Sıcaklığı

-55°C~85°C

Connector Type

Receptacle

Style

Board to Board or Cable

Akım Değeri

500mA
