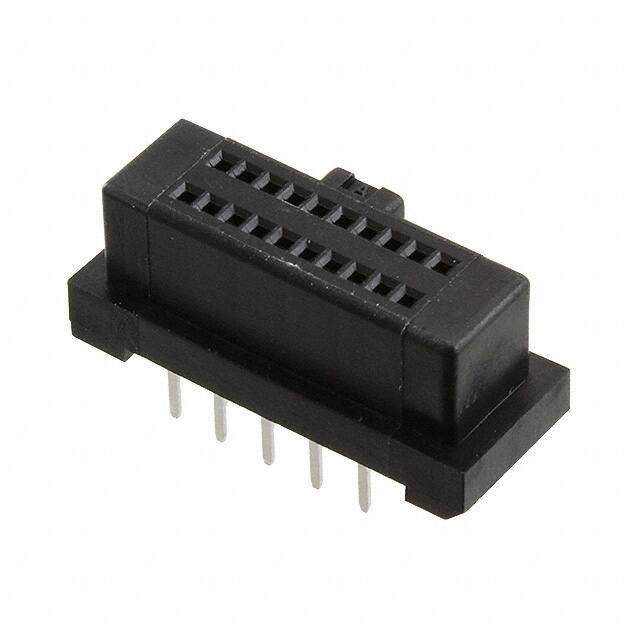

HIF6A-20DA-1.27DS(71)

Specifications

ECCN Kodu

EAR99

Material Flammability Rating

UL94 V-0

Durability

500 Cycles

Ul Flammability Code

94V-0

Insulation Materials

Polybutylene Terephthalate (PBT)

Mixed Contacts

NO

Contact Type

Female Socket

Dielectric Withstanding Voltage

300VAC V

Fastening Type

Push-Pull

Polarization Key

POLARIZED HOUSING

Din Conformance

NO

Ambalaj

Tray

Terminal

Solder

Number Of Positions Loaded

All

Mating Contact Pitch

0.05 inch

Özellikler

Polarizing Key

Parça Durumu

Active

Length Termination

0.118 inch

Contact Finish Thickness Mating

8.00μin 0.203μm

RoHS Durumu

RoHS Compliant

Pozisyon Sayısı

20

Style

Board to Board or Cable

Akım Değeri

500mA

Filter Feature

NO

Reliability

COMMERCIAL

Connector Type

Receptacle

Çalışma Sıcaklığı

-55°C~85°C

Number Of Pcb Rows

4

Insulation Resistance

1000000000Ohm

Applications

General Purpose

Reference Standard

UL

Contact Materials

Copper Alloy

REACH Uyumluluk Kodu

unknown

Mil Conformance

NO

Pcb Contact Pattern

STAGGERED

Sıra Sayısı

2

Pcb Contact Row Spacing

1.905 mm

Nominal Gerilim

125VAC

Contact Resistance

30mOhm

Mating Information

MULTIPLE MATING PARTS AVAILABLE
