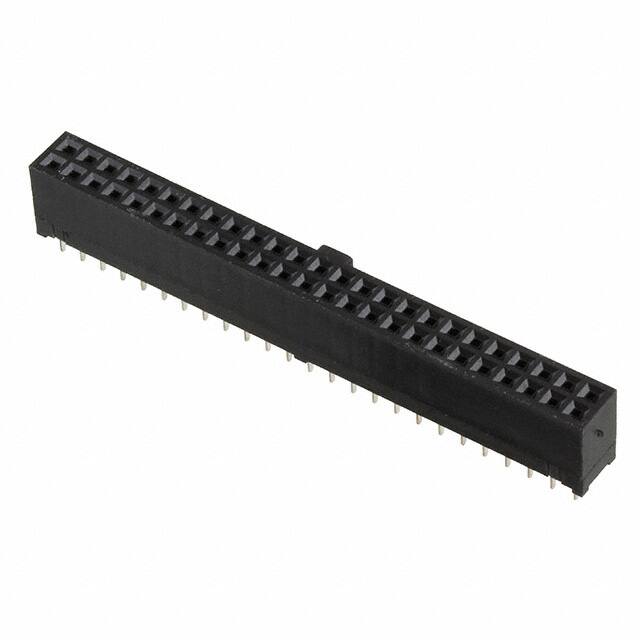

HIF3HB-50DA-2.54DSA(71)

Specifications

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

39.4μin 1.00μm

Insulation Height

0.374 9.50mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Contact Shape

Square

Current Rating Amps

3A

Contact Length Post

0.118 3.00mm

Montaj Tipi

Through Hole

Pitch Mating

0.100 2.54mm

Insulation Color

Black

JESD-609 Kodu

e4

Fabrika Tedarik Süresi

10 Weeks

Seri

HIF3H

Number Of Conductors

ONE

Applications

General Purpose

Reference Standard

UL

Contact Materials

Phosphor Bronze

REACH Uyumluluk Kodu

unknown

Insulation Resistance

1000000000Ohm

Number Of Pcb Rows

2

Mil Conformance

NO

Nominal Gerilim

300VAC

Contact Finish Post

Tin

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Contact Finish Mating

Gold

Kurşunsuz Kodu

yes

Contact Resistance

15mOhm

Length Termination

0.118 inch

Parça Durumu

Active

Özellikler

Polarizing Key

RoHS Durumu

RoHS Compliant

Contact Finish Thickness Mating

8.00μin 0.203μm

Pozisyon Sayısı

50

Style

Board to Board

Connector Type

Receptacle

Çalışma Sıcaklığı

-55°C~85°C

Filter Feature

NO

Reliability

COMMERCIAL
