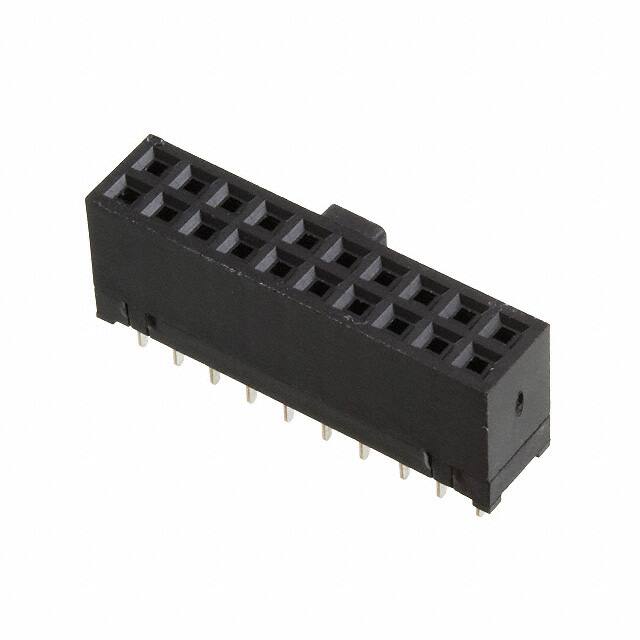

HIF3HA-20DA-2.54DSA(71)

Specifications

Mil Conformance

NO

Applications

General Purpose

Reference Standard

UL

Contact Materials

Phosphor Bronze

REACH Uyumluluk Kodu

unknown

Insulation Resistance

1000000000Ohm

Number Of Pcb Rows

2

Contact Finish Mating

Gold

Kurşunsuz Kodu

yes

Contact Resistance

15mOhm

Nominal Gerilim

300VAC

Contact Finish Post

Tin

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Contact Shape

Square

Current Rating Amps

3A

Contact Length Post

0.118 3.00mm

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

39.4μin 1.00μm

Insulation Height

0.374 9.50mm

Fabrika Tedarik Süresi

10 Weeks

Seri

HIF3H

Number Of Conductors

ONE

JESD-609 Kodu

e4

Insulation Color

Black

Mixed Contacts

NO

Contact Type

Female Socket

Ul Flammability Code

94V-0

Insulation Materials

Polybutylene Terephthalate (PBT)

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Mating Contact Pitch

0.1 inch

Terminal

Solder

Mounting Option1

LOCKING

Kurşunsuz

Lead Free

Ambalaj

Tray
