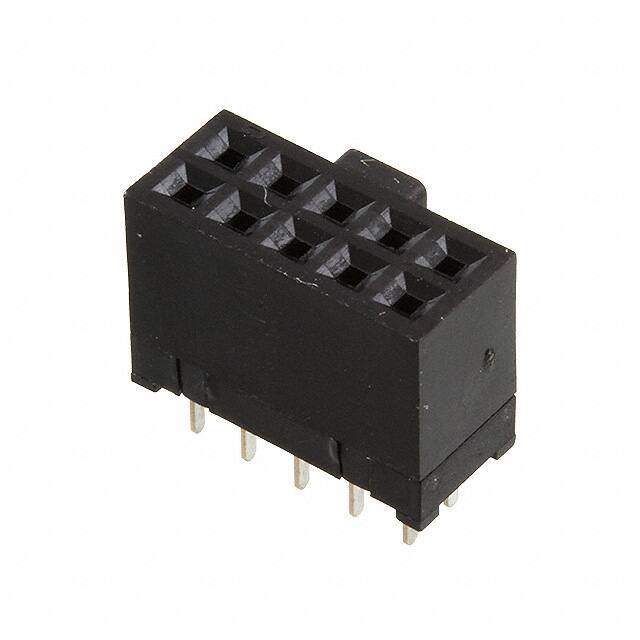

HIF3HA-10DA-2.54DSA(71)

Specifications

Terminal

Solder

Number Of Positions Loaded

All

Mating Contact Pitch

0.1 inch

Din Conformance

NO

Kurşunsuz

Lead Free

Ambalaj

Tray

Ul Flammability Code

94V-0

Insulation Materials

Polybutylene Terephthalate (PBT)

Mixed Contacts

NO

Contact Type

Female Socket

Material Flammability Rating

UL94 V-0

Filter Feature

NO

Reliability

COMMERCIAL

Connector Type

Receptacle

Çalışma Sıcaklığı

-55°C~85°C

Pozisyon Sayısı

10

Style

Board to Board

Contact Finish Thickness Mating

8.00μin 0.203μm

RoHS Durumu

RoHS Compliant

Parça Durumu

Active

Özellikler

Polarizing Key

Length Termination

0.118 inch

Contact Resistance

15mOhm

Kurşunsuz Kodu

yes

Contact Finish Mating

Gold

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Nominal Gerilim

300VAC

Contact Finish Post

Tin

Mil Conformance

NO

Number Of Pcb Rows

2

Applications

General Purpose

Reference Standard

UL

Contact Materials

Phosphor Bronze

REACH Uyumluluk Kodu

unknown

Seri

HIF3H

Number Of Conductors

ONE

Fabrika Tedarik Süresi

10 Weeks

Insulation Color

Black

JESD-609 Kodu

e4
