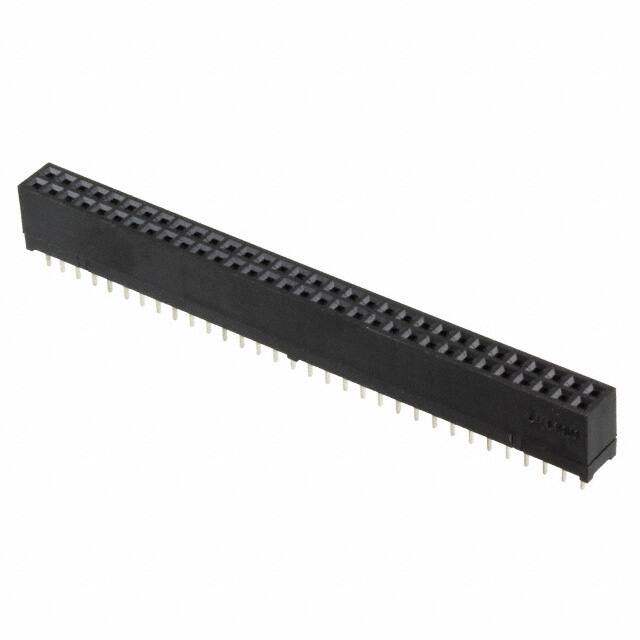

HIF3H-64DA-2.54DSA(71)

Specifications

Din Conformance

NO

Ambalaj

Tray

Kurşunsuz

Lead Free

Mounting Option1

LOCKING

Terminal

Solder

Mating Contact Pitch

0.1 inch

Number Of Positions Loaded

All

ECCN Kodu

EAR99

Material Flammability Rating

UL94 V-0

Insulation Materials

Polybutylene Terephthalate (PBT)

Ul Flammability Code

94V-0

Contact Type

Female Socket

Mixed Contacts

NO

Style

Board to Board

Pozisyon Sayısı

64

Reliability

COMMERCIAL

Filter Feature

NO

Çalışma Sıcaklığı

-55°C~85°C

Connector Type

Receptacle

Parça Durumu

Active

Length Termination

0.118 inch

Contact Finish Thickness Mating

8.00μin 0.203μm

RoHS Durumu

RoHS Compliant

Sıra Sayısı

2

Pcb Contact Pattern

RECTANGULAR

Contact Finish Post

Tin

Nominal Gerilim

300VAC

Contact Resistance

15mOhm

Kurşunsuz Kodu

yes

Contact Finish Mating

Gold

Number Of Pcb Rows

2

Insulation Resistance

1000000000Ohm

REACH Uyumluluk Kodu

unknown

Contact Materials

Phosphor Bronze

Applications

General Purpose

Reference Standard

UL

Mil Conformance

NO

JESD-609 Kodu

e4

Insulation Color

Black

Number Of Conductors

ONE
