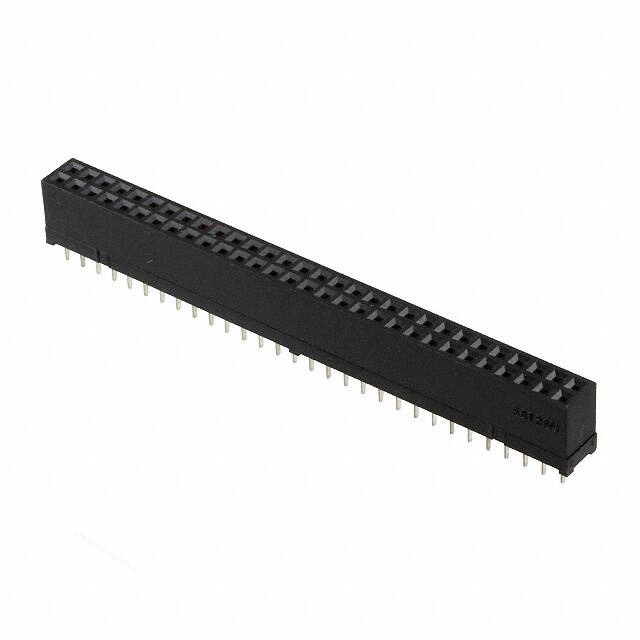

HIF3H-60DA-2.54DSA(71)

Specifications

REACH Uyumluluk Kodu

unknown

Applications

General Purpose

Reference Standard

UL

Contact Materials

Phosphor Bronze

Insulation Resistance

1GOhm

Number Of Pcb Rows

2

Mil Conformance

NO

Voltage Rated Ac

300V

Insulation

Insulated

Nominal Gerilim

300VAC

Contact Finish Post

Tin

Sıra Sayısı

2

Pcb Contact Pattern

RECTANGULAR

Contact Finish Mating

Gold

Kurşunsuz Kodu

yes

Contact Resistance

15mOhm

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

39.4μin 1.00μm

Insulation Height

0.374 9.50mm

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.118 3.00mm

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole

Contact Shape

Square

HTS Kodu

8536.69.40.40

JESD-609 Kodu

e4

Insulation Color

Black

Fabrika Tedarik Süresi

10 Weeks

Contact Gender

Female

Seri

HIF3H

Number Of Conductors

ONE

Material Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Contact Type

Female Socket

Mixed Contacts

NO

Housing Material

PBT

Insulation Materials

Polybutylene Terephthalate (PBT)

Ul Flammability Code

94V-0

Ambalaj

Tray
