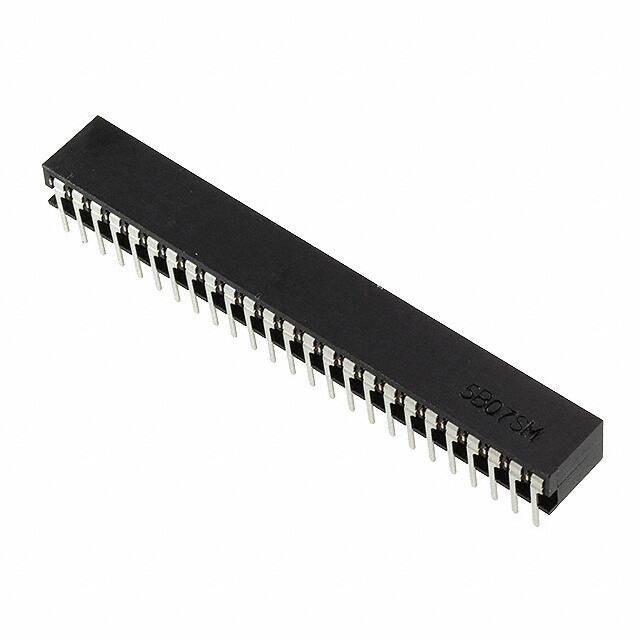

HIF3H-50DB-2.54DS(71)

Specifications

Ambalaj

Tray

Kurşunsuz

Lead Free

Mounting Option1

LOCKING

Polarization Key

POLARIZED HOUSING

Din Conformance

NO

Mating Contact Pitch

0.1 inch

Number Of Positions Loaded

All

Terminal

Solder

Material Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Contact Type

Female Socket

Dielectric Withstanding Voltage

1000VAC V

Mixed Contacts

NO

Insulation Materials

Polybutylene Terephthalate (PBT)

Ul Flammability Code

94V-0

Style

Board to Board

Pozisyon Sayısı

50

Çalışma Sıcaklığı

-55°C~85°C

Connector Type

Receptacle

Reliability

COMMERCIAL

Filter Feature

NO

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Contact Finish Thickness Mating

8.00μin 0.203μm

Contact Finish Post

Tin

Nominal Gerilim

300VAC

Sıra Sayısı

2

Pcb Contact Pattern

RECTANGULAR

Contact Finish Mating

Gold

Contact Resistance

15mOhm

Kurşunsuz Kodu

yes

REACH Uyumluluk Kodu

unknown

Applications

General Purpose

Reference Standard

UL

Contact Materials

Phosphor Bronze

Number Of Pcb Rows

2

Insulation Resistance

1000000000Ohm

Mil Conformance

NO

Insulation Color

Black

JESD-609 Kodu

e4
