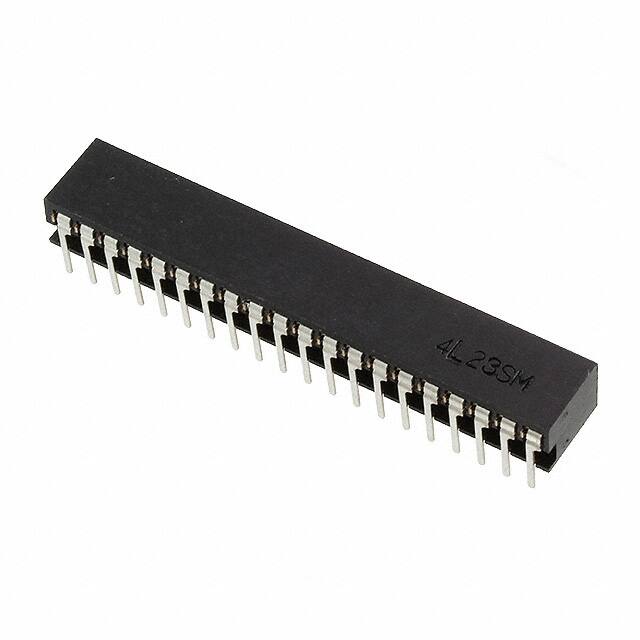

HIF3H-40DB-2.54DS(71)

Specifications

Kurşunsuz

Lead Free

Nominal Gerilim

300VAC

Ambalaj

Tray

Contact Finish Post

Tin

Din Conformance

NO

Sıra Sayısı

2

Number Of Positions Loaded

All

Contact Finish Mating

Gold

Terminal

Solder

Kurşunsuz Kodu

yes

Material Flammability Rating

UL94 V-0

Contact Materials

Phosphor Bronze

Applications

General Purpose

REACH Uyumluluk Kodu

unknown

ECCN Kodu

EAR99

Mixed Contacts

NO

Contact Type

Female Socket

Ul Flammability Code

94V-0

Mil Conformance

NO

Insulation Materials

Polybutylene Terephthalate (PBT)

Pozisyon Sayısı

40

JESD-609 Kodu

e4

Insulation Color

Black

Style

Board to Board

Connector Type

Receptacle

Fabrika Tedarik Süresi

10 Weeks

Çalışma Sıcaklığı

-55°C~85°C

Filter Feature

NO

Seri

HIF3H

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

39.4μin 1.00μm

Parça Durumu

Active

Insulation Height

0.236 6.00mm

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Contact Shape

Square

Current Rating Amps

3A

Contact Length Post

0.126 3.20mm

Contact Finish Thickness Mating

8.00μin 0.203μm
