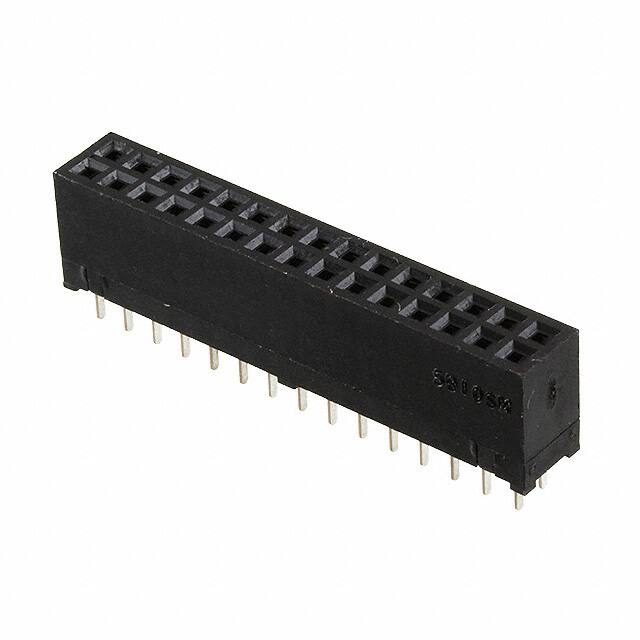

HIF3H-30DA-2.54DSA(71)

Specifications

Din Conformance

NO

Mounting Option1

LOCKING

Kurşunsuz

Lead Free

Ambalaj

Tray

Terminal

Solder

Number Of Positions Loaded

All

Mating Contact Pitch

0.1 inch

Material Flammability Rating

UL94 V-0

Ul Flammability Code

94V-0

Insulation Materials

Polybutylene Terephthalate (PBT)

Mixed Contacts

NO

Contact Type

Female Socket

Pozisyon Sayısı

30

Style

Board to Board

Filter Feature

NO

Reliability

COMMERCIAL

Connector Type

Receptacle

Çalışma Sıcaklığı

-55°C~85°C

Parça Durumu

Active

Length Termination

0.118 inch

Contact Finish Thickness Mating

8.00μin 0.203μm

RoHS Durumu

RoHS Compliant

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Nominal Gerilim

300VAC

Contact Finish Post

Tin

Kurşunsuz Kodu

yes

Contact Resistance

15mOhm

Contact Finish Mating

Gold

Insulation Resistance

1000000000Ohm

Number Of Pcb Rows

2

Contact Materials

Phosphor Bronze

Reference Standard

UL

Applications

General Purpose

REACH Uyumluluk Kodu

unknown

Mil Conformance

NO

Insulation Color

Black

JESD-609 Kodu

e4

Seri

HIF3H

Number Of Conductors

ONE
