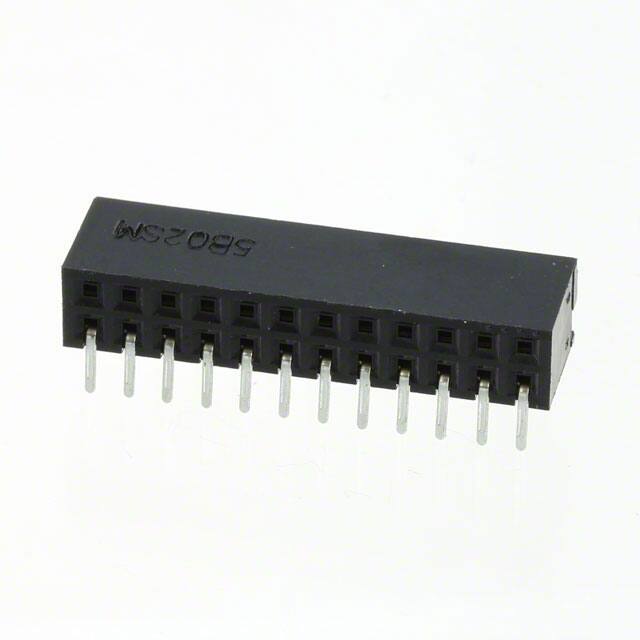

HIF3H-24DB-2.54DS(71)

Specifications

Terminal

Solder

Kurşunsuz Kodu

yes

Contact Finish Mating

Gold

Number Of Positions Loaded

All

Din Conformance

NO

Sıra Sayısı

2

Ambalaj

Tray

Contact Finish Post

Tin

Nominal Gerilim

300VAC

Insulation Materials

Polybutylene Terephthalate (PBT)

Mil Conformance

NO

Ul Flammability Code

94V-0

Contact Type

Female Socket

Mixed Contacts

NO

REACH Uyumluluk Kodu

unknown

Material Flammability Rating

UL94 V-0

Contact Materials

Phosphor Bronze

Applications

General Purpose

Seri

HIF3H

Filter Feature

NO

Çalışma Sıcaklığı

-55°C~85°C

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Receptacle

Style

Board to Board

Insulation Color

Black

Pozisyon Sayısı

24

JESD-609 Kodu

e4

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole, Right Angle

Contact Finish Thickness Mating

8.00μin 0.203μm

Contact Length Post

0.126 3.20mm

Current Rating Amps

3A

Contact Shape

Square

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Insulation Height

0.236 6.00mm

Parça Durumu

Active

Contact Finish Thickness Post

39.4μin 1.00μm

Row Spacing Mating

0.100 (2.54mm)
