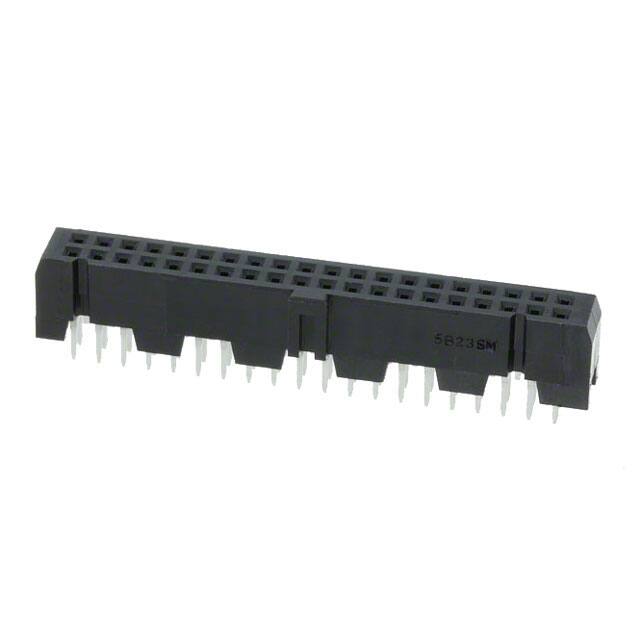

HIF3FB-50DA-2.54DSA(71)

Specifications

Contact Shape

Square

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole

Contact Length Post

0.118 3.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Insulation Height

0.374 9.50mm

Contact Finish Thickness Post

78.7μin 2.00μm

Row Spacing Mating

0.100 (2.54mm)

Montaj

Through Hole

Number Of Conductors

ONE

Seri

HIF3FB

Fabrika Tedarik Süresi

12 Weeks

Insulation Color

Black

JESD-609 Kodu

e3

Body Depth

0.374 inch

Orientation

Straight

Voltage Rated Ac

200V

Mil Conformance

NO

Number Of Pcb Rows

2

Insulation Resistance

1000000000Ohm

Contact Materials

Copper Alloy

Reference Standard

UL

Applications

General Purpose

REACH Uyumluluk Kodu

unknown

Contact Resistance

15mOhm

Contact Finish Mating

Gold

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Contact Finish Post

Tin

Nominal Gerilim

200VAC

Additional Feature

LOW PROFILE

Contact Finish Thickness Mating

8.00μin 0.203μm

Yükseklik

9.5mm

RoHS Durumu

RoHS Compliant

Özellikler

Polarizing Key

Parça Durumu

Active

Filter Feature

NO

Reliability

COMMERCIAL

Connector Type

Receptacle
