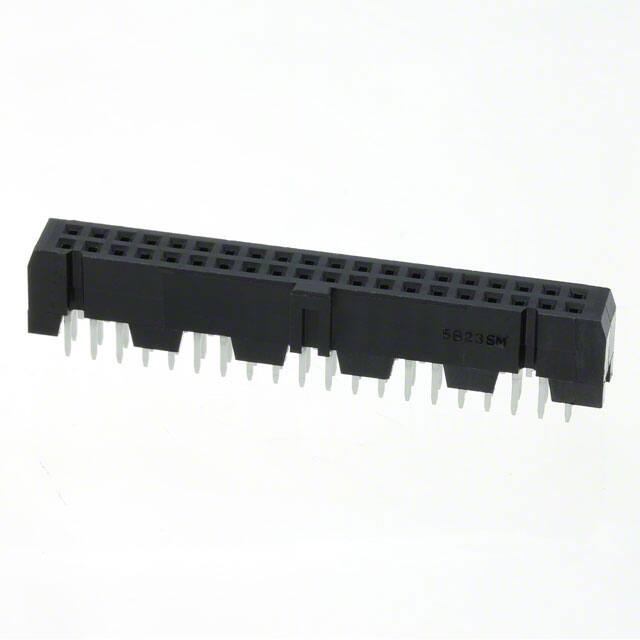

HIF3FB-40DA-2.54DSA(71)

Specifications

Orientation

Straight

JESD-609 Kodu

e3

Insulation Color

Black

Body Depth

0.374 inch

Fabrika Tedarik Süresi

10 Weeks

Contact Gender

Female

Number Of Conductors

ONE

Seri

HIF3FB

Contact Finish Thickness Post

78.7μin 2.00μm

Montaj

Through Hole

Row Spacing Mating

0.100 (2.54mm)

Insulation Height

0.374 9.50mm

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole

Contact Length Post

0.118 3.00mm

Contact Shape

Square

Contact Finish Post

Tin

Nominal Gerilim

200VAC

Sıra Sayısı

2

Pcb Contact Pattern

RECTANGULAR

Contact Finish Mating

Gold

Contact Resistance

15mOhm

REACH Uyumluluk Kodu

unknown

Applications

General Purpose

Reference Standard

UL

Contact Materials

Copper Alloy

Number Of Pcb Rows

2

Insulation Resistance

1GOhm

Mil Conformance

NO

Style

Board to Board or Cable

Akım Değeri

1A

Pozisyon Sayısı

40

Çalışma Sıcaklığı

-55°C~85°C

Connector Type

Receptacle

Rated Current Signal

1A

Reliability

COMMERCIAL

Filter Feature

NO

Özellikler

Polarizing Key
