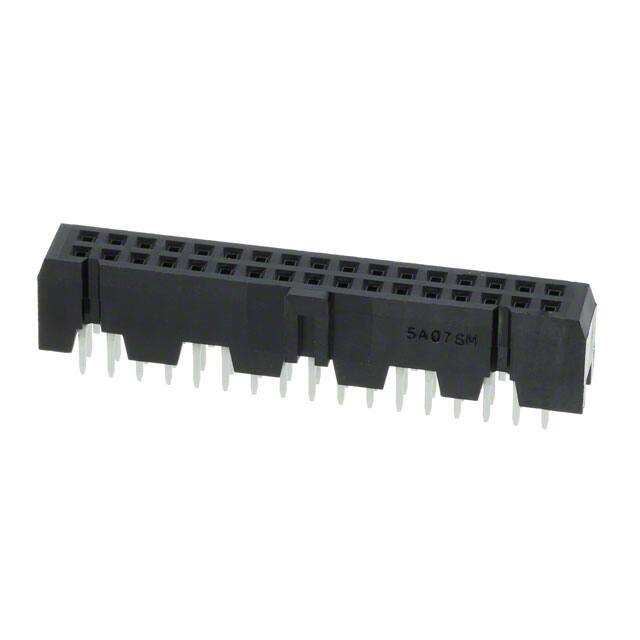

HIF3FB-34DA-2.54DSA(71)

Specifications

Material Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Mixed Contacts

NO

Dielectric Withstanding Voltage

650VAC V

Contact Type

Female Socket

Ul Flammability Code

94V-0

Durability

500 Cycles

Insulation Materials

Polybutylene Terephthalate (PBT)

Ambalaj

Tray

Fastening Type

Push-Pull

Din Conformance

NO

Polarization Key

POLARIZED HOUSING

Stack Height Mating

12.2mm

Number Of Positions Loaded

All

Mating Contact Pitch

0.1 inch

Terminal

Solder

Length Termination

0.098 inch

Parça Durumu

Active

Özellikler

Polarizing Key

RoHS Durumu

RoHS Compliant

Additional Feature

LOW PROFILE

Contact Finish Thickness Mating

8.00μin 0.203μm

Pozisyon Sayısı

34

Akım Değeri

1A

Style

Board to Board or Cable

Rated Current Signal

1A

Connector Type

Receptacle

Body Length Or Diameter

1.88 inch

Çalışma Sıcaklığı

-55°C~85°C

Filter Feature

NO

Reliability

COMMERCIAL

Contact Materials

Copper Alloy

Reference Standard

UL

Applications

General Purpose

REACH Uyumluluk Kodu

unknown

Insulation Resistance

1000000000Ohm

Number Of Pcb Rows

2

Mil Conformance

NO

Nominal Gerilim

200VAC

Contact Finish Post

Tin
