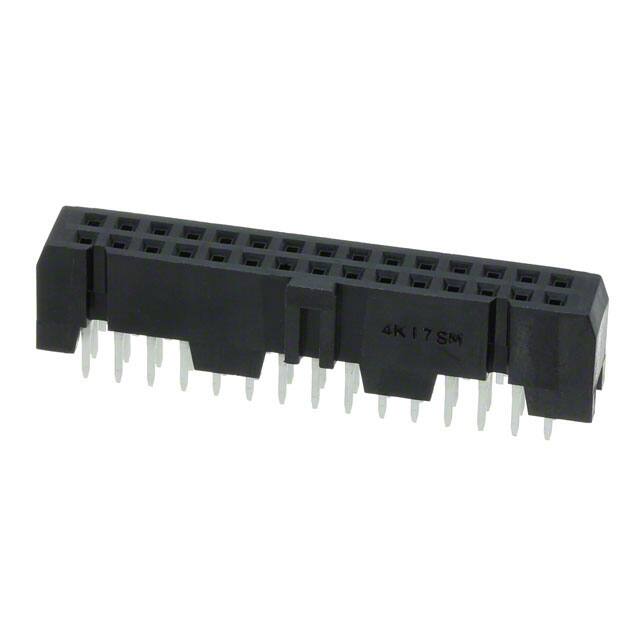

HIF3FB-30DA-2.54DSA(71)

Specifications

JESD-609 Kodu

e3

Insulation Color

Black

Body Depth

0.374 inch

Orientation

Straight

Fabrika Tedarik Süresi

12 Weeks

Number Of Conductors

ONE

Seri

HIF3FB

Contact Finish Thickness Post

78.7μin 2.00μm

Row Spacing Mating

0.100 (2.54mm)

Montaj

PCB

Insulation Height

0.374 9.50mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

HTS Kodu

8536.69.40.40

Contact Shape

Square

Montaj Tipi

Through Hole

Pitch Mating

0.100 2.54mm

Contact Length Post

0.118 3.00mm

Contact Finish Post

Tin

Nominal Gerilim

200VAC

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Contact Finish Mating

Gold

Contact Resistance

15mOhm

Applications

General Purpose

Reference Standard

UL

Contact Materials

Copper Alloy

Number Of Pcb Rows

2

Insulation Resistance

1000000000Ohm

Mil Conformance

NO

Pozisyon Sayısı

30

Style

Board to Board or Cable

Akım Değeri

1A

Connector Type

Receptacle

Rated Current Signal

1A

Body Length Or Diameter

1.68 inch

Çalışma Sıcaklığı

-55°C~85°C

Radyasyon Dayanımı

No

Filter Feature

NO

Reliability

COMMERCIAL
