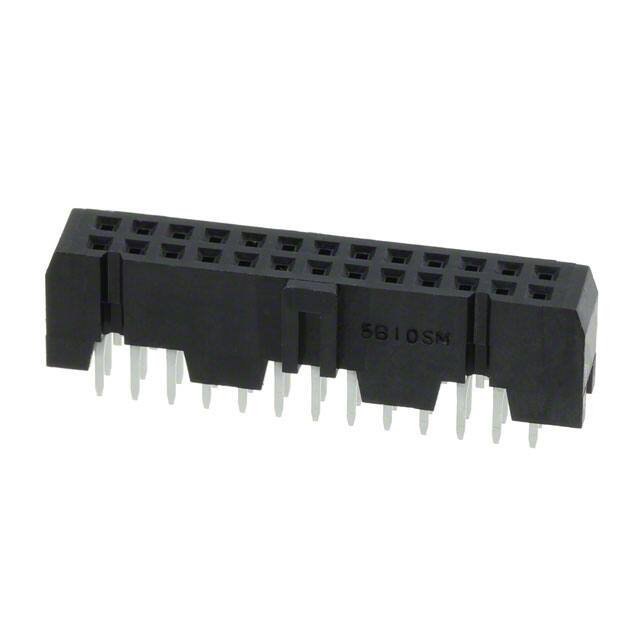

HIF3FB-26DA-2.54DSA(71)

Specifications

Connector Type

Receptacle

Rated Current Signal

1A

Çalışma Sıcaklığı

-55°C~85°C

Body Length Or Diameter

1.48 inch

Radyasyon Dayanımı

No

Filter Feature

NO

Reliability

COMMERCIAL

Pozisyon Sayısı

26

Style

Board to Board or Cable

Akım Değeri

1A

RoHS Durumu

RoHS Compliant

Additional Feature

LOW PROFILE

Contact Finish Thickness Mating

8.00μin 0.203μm

Length Termination

0.098 inch

Özellikler

Polarizing Key

Parça Durumu

Active

Number Of Positions Loaded

All

Mating Contact Pitch

0.1 inch

Terminal

Solder

Kurşunsuz

Lead Free

Ambalaj

Tray

Fastening Type

Push-Pull

Stack Height Mating

12.2mm

Polarization Key

POLARIZED HOUSING

Din Conformance

NO

Mixed Contacts

NO

Contact Type

Female Socket

Dielectric Withstanding Voltage

650VAC V

Durability

500 Cycles

Ul Flammability Code

94V-0

Insulation Materials

Polybutylene Terephthalate (PBT)

Material Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

10 Weeks

Number Of Conductors

ONE

Seri

HIF3FB

Insulation Color

Black

JESD-609 Kodu

e3

Body Depth

0.374 inch

Orientation

Straight

Nem Hassasiyeti (MSL)

1 (Unlimited)
