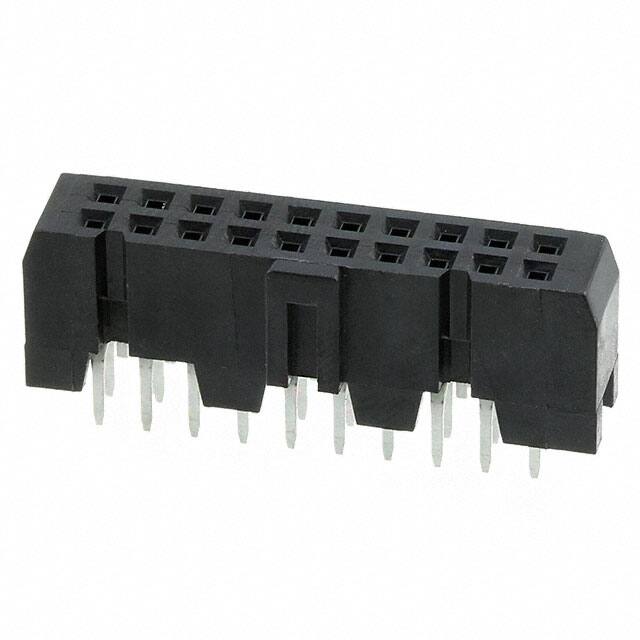

HIF3FB-20DA-2.54DSA(71)

Specifications

Reliability

COMMERCIAL

Radyasyon Dayanımı

No

Filter Feature

NO

Çalışma Sıcaklığı

-55°C~85°C

Body Length Or Diameter

1.18 inch

Connector Type

Receptacle

Rated Current Signal

1A

Style

Board to Board or Cable

Akım Değeri

1A

Pozisyon Sayısı

20

Contact Finish Thickness Mating

8.00μin 0.203μm

Additional Feature

LOW PROFILE

RoHS Durumu

RoHS Compliant

Özellikler

Polarizing Key

Parça Durumu

Active

Length Termination

0.098 inch

Terminal

Solder

Mating Contact Pitch

0.1 inch

Number Of Positions Loaded

All

Stack Height Mating

12.2mm

Polarization Key

POLARIZED HOUSING

Din Conformance

NO

Fastening Type

Push-Pull

Ambalaj

Tray

Insulation Materials

Polybutylene Terephthalate (PBT)

Durability

500 Cycles

Ul Flammability Code

94V-0

Contact Type

Female Socket

Dielectric Withstanding Voltage

650VAC V

Mixed Contacts

NO

ECCN Kodu

EAR99

Material Flammability Rating

UL94 V-0

Number Of Conductors

ONE

Seri

HIF3FB

Fabrika Tedarik Süresi

10 Weeks

Orientation

Straight

Insulation Color

Black

JESD-609 Kodu

e3

Body Depth

0.374 inch

Montaj Tipi

Through Hole
