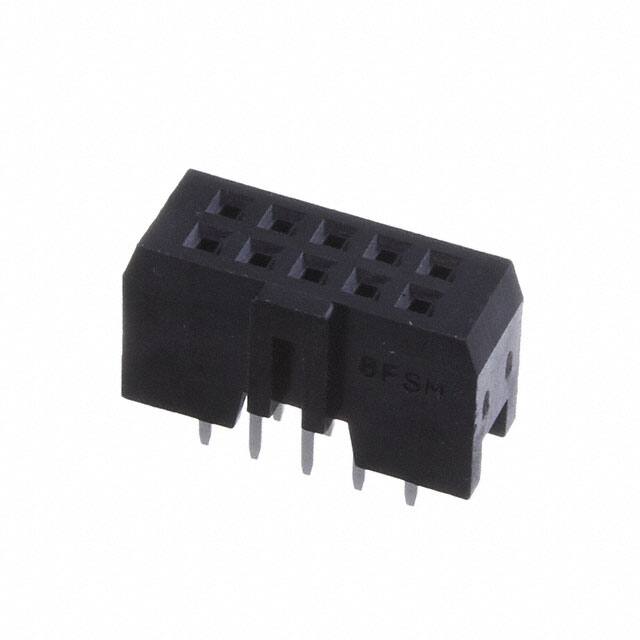

HIF3FB-10DA-2.54DSA(71)

Specifications

Nominal Gerilim

200VAC

Contact Finish Post

Tin

Sıra Sayısı

2

Pcb Contact Pattern

RECTANGULAR

Contact Finish Mating

Gold

Contact Resistance

15mOhm

Reference Standard

UL

Applications

General Purpose

Contact Materials

Copper Alloy

Insulation Resistance

1GOhm

Number Of Pcb Rows

2

Mil Conformance

NO

Orientation

Straight

Body Depth

0.374 inch

JESD-609 Kodu

e3

Insulation Color

Black

Fabrika Tedarik Süresi

11 Weeks

Contact Gender

Female

Seri

HIF3FB

Number Of Conductors

ONE

Montaj

Through Hole

Row Spacing Mating

0.100 (2.54mm)

Contact Finish Thickness Post

78.7μin 2.00μm

Insulation Height

0.374 9.50mm

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.118 3.00mm

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole

Contact Shape

Square

HTS Kodu

8536.69.40.40

Ambalaj

Tray

Kurşunsuz

Lead Free

Polarization Key

POLARIZED HOUSING

Din Conformance

NO

Stack Height Mating

12.2mm

Fastening Type

Push-Pull

Mating Contact Pitch

0.1 inch

Number Of Positions Loaded

All

Contact Plating

Gold, Tin
