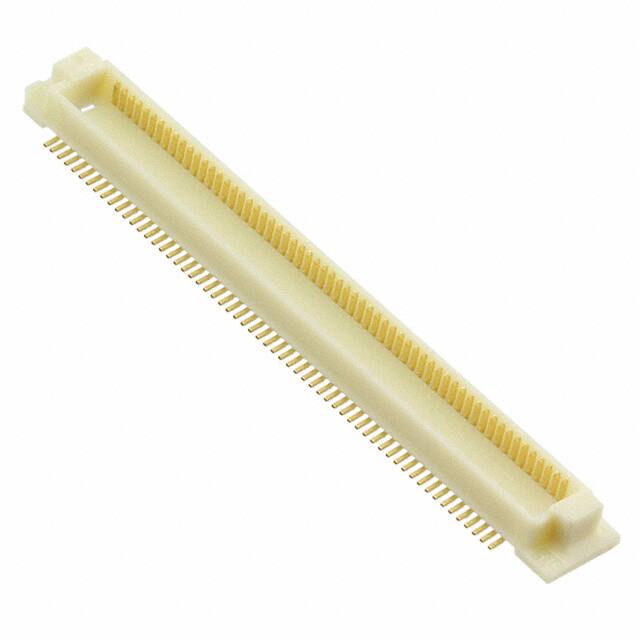

FX8-120P-SV(71)

Specifications

Montaj

Surface Mount

Yayın Yılı

2008

Reliability

COMMERCIAL

Contact Resistance

45mOhm

Fabrika Tedarik Süresi

10 Weeks

Parça Durumu

Active

Stack Height Mating

3mm

Pitch

0.024 0.60mm

Insulation Resistance

1000000000Ohm

Mixed Contacts

NO

Total Number Of Contacts

120

Number Of Conductors

ONE

Terminal

SMD/SMT

Height Above Board

0.112 2.85mm

Mil Conformance

NO

RoHS Durumu

RoHS Compliant

Insulator Color

BROWN

Ambalaj

Tray

Durability

50 Cycles

Connector Type

Header, Outer Shroud Contacts

Operating Temperature Max

85°C

ECCN Kodu

EAR99

Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount

Filter Feature

NO

Dielectric Withstanding Voltage

300VAC V

Pcb Contact Pattern

RECTANGULAR

Operating Temperature Min

-55°C

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Pozisyon Sayısı

120

Seri

FunctionMax™ FX8

Din Conformance

NO

Additional Feature

LOW PROFILE

Body Length Or Diameter

1.677 inch

Contact Style

BELLOWED TYPE

Option

GENERAL PURPOSE

Reference Standard

UL

Gender

Male
