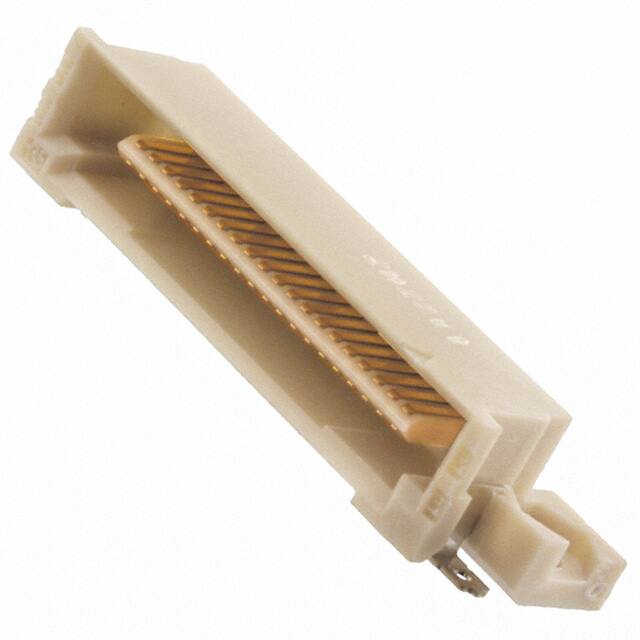

FX5-40P-SH(71)

Specifications

Option

GENERAL PURPOSE

Akım Değeri

500mA

Reference Standard

UL

Additional Feature

LOW PROFILE

Body Length Or Diameter

1.339 inch

Radyasyon Dayanımı

No

Özellikler

Board Guide, Flange

Kurşunsuz Kodu

yes

Number Of Pcb Rows

1

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Male

Contact Finish

Gold

Rated Current Signal

0.5A

Contact Materials

Brass

Polarization Key

POLARIZED HOUSING

Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Operating Temperature Max

85°C

Operating Temperature Min

-55°C

Housing Material

Polyamide

Pozisyon Sayısı

40

Seri

FX5

Din Conformance

NO

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

JESD-609 Kodu

e3

Dielectric Withstanding Voltage

300VAC V

Pcb Contact Pattern

RECTANGULAR

Mil Conformance

NO

Terminal

SMD/SMT

Number Of Conductors

ONE

Height Above Board

0.256 6.50mm

Stack Height

6.5mm

RoHS Durumu

RoHS Compliant

Ambalaj

Tray

Insulator Color

BEIGE

Durability

500 Cycles

Connector Type

Header, Center Strip Contacts
