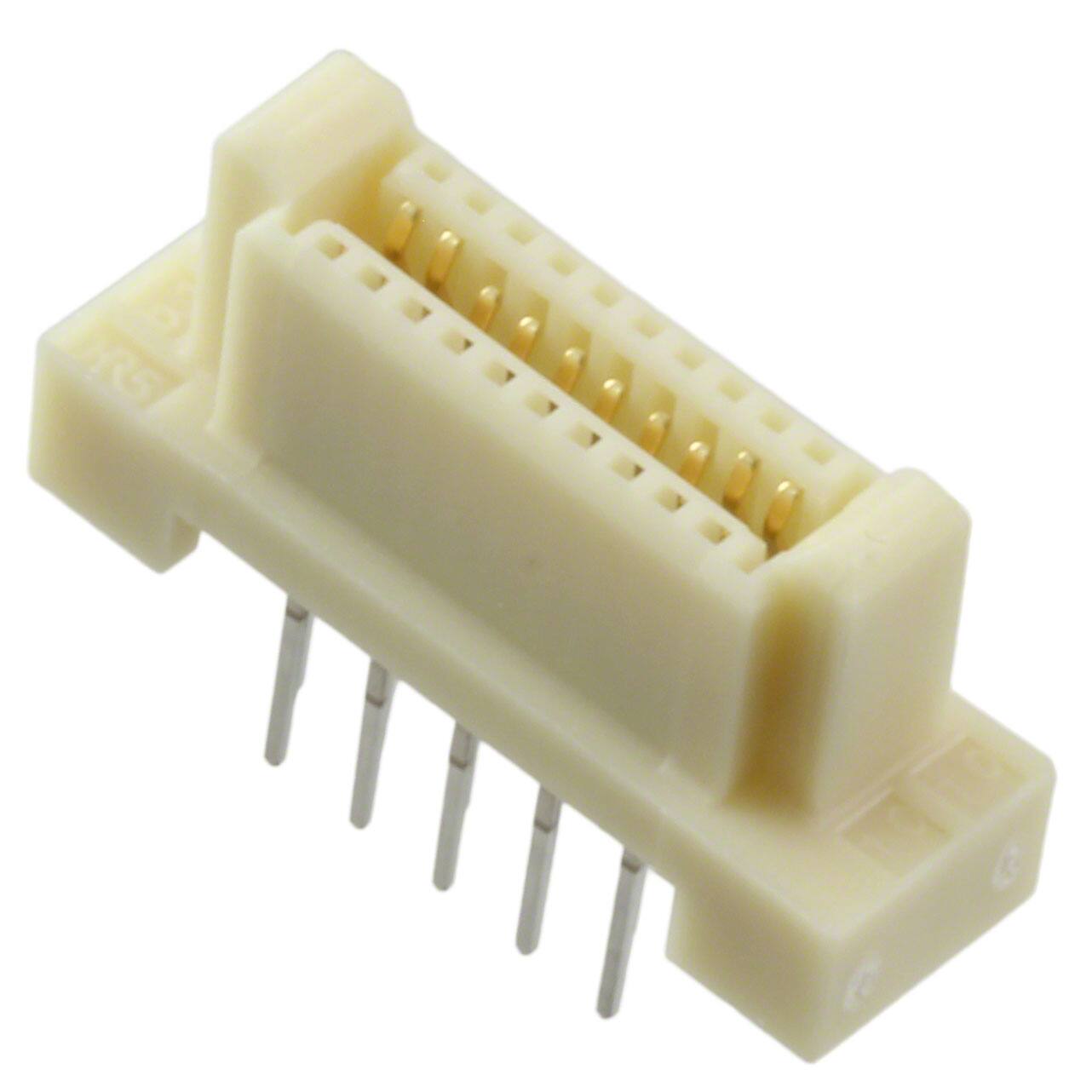

FX5-20S2A-DSA(71)

Specifications

Contact Materials

Bronze

Polarization Key

POLARIZED HOUSING

Contact Finish

Gold

Rated Current Signal

0.5A

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Female

Kurşunsuz Kodu

yes

Number Of Pcb Rows

4

Radyasyon Dayanımı

No

Body Length Or Diameter

0.748 inch

Additional Feature

WITHOUT BOARD PREFIXED PIN

Maks. Çalışma Sıcaklığı

85°C

Reference Standard

UL

Akım Değeri

500mA

Option

GENERAL PURPOSE

Contact Style

BELLOWED TYPE

Pcb Contact Pattern

STAGGERED

JESD-609 Kodu

e3

Dielectric Withstanding Voltage

300VAC V

Montaj Tipi

Through Hole

Filter Feature

NO

Ul Flammability Code

94V-0

Din Conformance

NO

Seri

FX5

Pozisyon Sayısı

20

Housing Material

Polyamide

Min. Çalışma Sıcaklığı

-55°C

Sıra Sayısı

2

Contact Pattern

RECTANGULAR

Length Termination

0.134 inch

Connector Type

Receptacle, Outer Shroud Contacts

Durability

500 Cycles

Ambalaj

Tray

Insulator Color

BEIGE

RoHS Durumu

RoHS Compliant

Height Above Board

0.366 9.30mm

Terminal

Through Hole

Number Of Conductors

ONE

Mil Conformance

NO
