Volume pricing
- 1+ pcs$2.43
- 10+ pcs$2.29
- 100+ pcs$2.16
- 500+ pcs$2.04
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

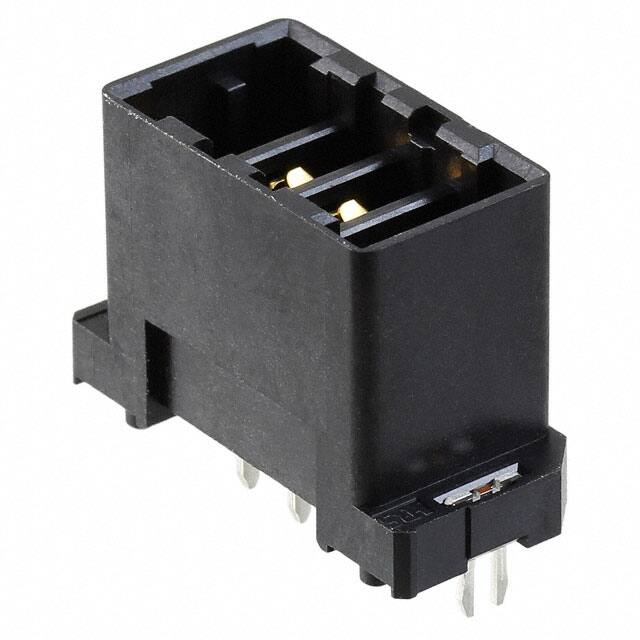

Specifications
- Seri
- FunctionMax™ FX30B
- Insulation Height
- 0.630 16.00mm
- Reference Standard
- UL,TUV
- Fabrika Tedarik Süresi
- 10 Weeks
- Stack Height Mating
- 20mm 25mm 30mm
- Contact Finish Mating
- Gold
- Contact Type
- Female Blade Socket
- Reliability
- COMMERCIAL
- Connector Type
- Receptacle
- Akım Değeri
- 10A
- Montaj Tipi
- Through Hole
- REACH Uyumluluk Kodu
- unknown
- Parça Durumu
- Active
- Contact Finish Thickness Post
- 39.4μin 1.00μm
- Reach Svhc
- No SVHC
- Terminal
- Solder
- Nominal Gerilim
- 250V
- Ambalaj
- Tray
- Number Of Conductors
- ONE
- Style
- Board to Board
- ECCN Kodu
- EAR99
- Özellikler
- Board Guide, Board Lock
- Pozisyon Sayısı
- 3
- Contact Resistance
- 2mOhm
- RoHS Durumu
- RoHS Compliant
- Applications
- General Purpose
- Fastening Type
- Latch Holder
- Sıra Sayısı
- 1
- Orientation
- Straight
- Çalışma Sıcaklığı
- -55°C~105°C
- Number Of Positions Loaded
- All
- Contact Finish Post
- Tin
- Montaj
- Through Hole
- Material Flammability Rating
- UL94 V-0
- Dielectric Withstanding Voltage
- 750VAC V
- Contact Materials
- Copper Alloy
- Contact Finish Thickness Mating
- 3.90μin 0.099μm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Mixed Contacts
- YES
- Contact Length Post
- 0.130 3.30mm
