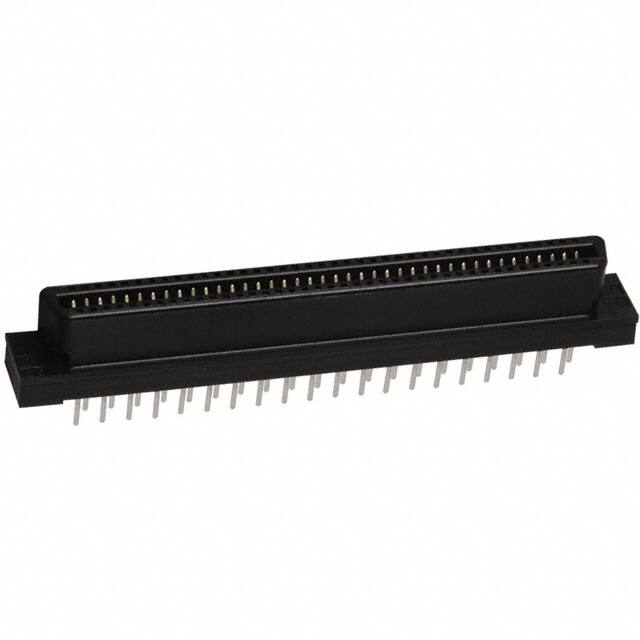

FX2CA-80S-1.27DSA

Specifications

Option

GENERAL PURPOSE

Dielectric Withstanding Voltage

300VAC V

Pcb Contact Row Spacing

1.905 mm

Mil Conformance

NO

Contact Style

BELLOWED TYPE

Sıra Sayısı

2

Termination Type

SOLDER

Parça Durumu

Obsolete

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Gender

FEMALE

Din Conformance

NO

Reliability

COMMERCIAL

Connector Type

BOARD STACKING CONNECTOR

Kurşunsuz

Contains Lead

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Rated Current Signal

0.5A

Contact Materials

Bronze

Montaj Tipi

BOARD

RoHS Durumu

Non-RoHS Compliant

Length Termination

0.13 inch

Contact Plating

Gold

Operating Temperature Min

-55°C

Number Of Pcb Rows

4

Additional Feature

STAGGERED CONFIGURATION, POLARIZED

Insulation Resistance

1000000000Ohm

Filter Feature

NO

Flammability Rating

UL94 V-0

Iec Conformance

NO

Reference Standard

UL

Contact Resistance

45mOhm

REACH Uyumluluk Kodu

unknown

Body Depth

0.138 inch

Operating Temperature Max

85°C

Montaj Stili

STRAIGHT

Housing Material

Plastic

Housing Color

Black

Ul Flammability Code

94V-0

JESD-609 Kodu

e4

Mixed Contacts

NO

Lead Pitch

1.27mm
