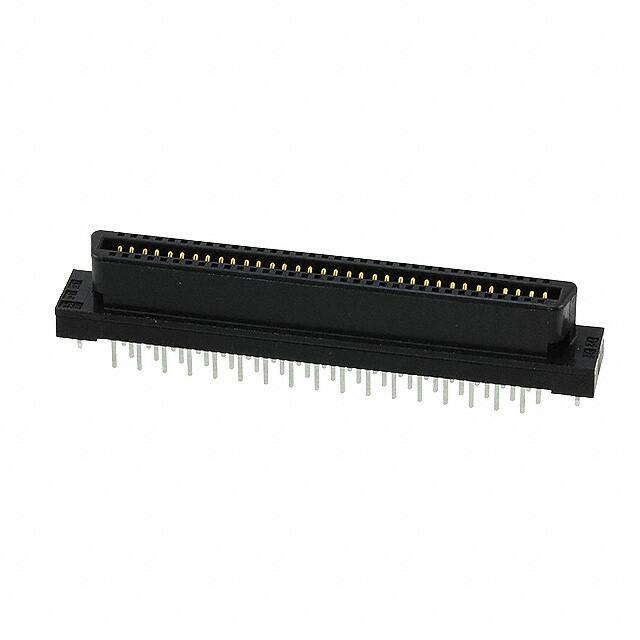

FX2CA-68S-1.27DSA

Specifications

Option

GENERAL PURPOSE

Contact Style

BELLOWED TYPE

Sıra Sayısı

2

Mil Conformance

NO

Pcb Contact Row Spacing

1.905 mm

Dielectric Withstanding Voltage

300VAC V

Parça Durumu

Obsolete

Termination Type

SOLDER

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

BOARD STACKING CONNECTOR

Reliability

COMMERCIAL

Din Conformance

NO

Contact Gender

FEMALE

Kurşunsuz

Contains Lead

Montaj Tipi

BOARD

Contact Materials

Bronze

Rated Current Signal

0.5A

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Length Termination

0.13 inch

Contact Plating

Gold

RoHS Durumu

Non-RoHS Compliant

Operating Temperature Min

-55°C

Filter Feature

NO

Insulation Resistance

1000000000Ohm

Number Of Pcb Rows

4

Additional Feature

STAGGERED CONFIGURATION, POLARIZED

Iec Conformance

NO

Flammability Rating

UL94 V-0

HTS Kodu

8536.69.40.40

ECCN Kodu

EAR99

Reference Standard

UL

REACH Uyumluluk Kodu

unknown

Contact Resistance

45mOhm

Operating Temperature Max

85°C

Body Depth

0.138 inch

Montaj Stili

STRAIGHT

Housing Material

Plastic

JESD-609 Kodu

e4

Ul Flammability Code

94V-0

Housing Color

Black
