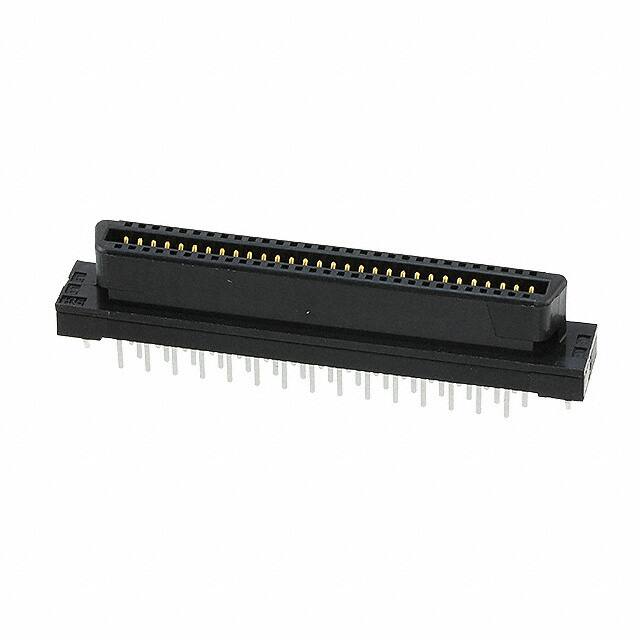

FX2CA-60S-1.27DSA

Specifications

Montaj Stili

STRAIGHT

Operating Temperature Max

85°C

Body Depth

0.138 inch

Housing Material

Plastic

Contact Resistance

45mOhm

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

Mating Contact Pitch

0.05 inch

Pcb Contact Pattern

STAGGERED

Bodyshell Style

RECEPTACLE

Mixed Contacts

NO

Housing Color

Black

JESD-609 Kodu

e4

Ul Flammability Code

94V-0

Contact Pattern

RECTANGULAR

Lead Pitch

1.27mm

Number Of Contacts

60

Din Conformance

NO

Contact Gender

FEMALE

Reliability

COMMERCIAL

Connector Type

BOARD STACKING CONNECTOR

Nem Hassasiyeti (MSL)

1 (Unlimited)

Option

GENERAL PURPOSE

Parça Durumu

Obsolete

Termination Type

SOLDER

Pcb Contact Row Spacing

1.905 mm

Mil Conformance

NO

Sıra Sayısı

2

Contact Style

BELLOWED TYPE

Dielectric Withstanding Voltage

300VAC V

Operating Temperature Min

-55°C

RoHS Durumu

Non-RoHS Compliant

Length Termination

0.13 inch

Contact Plating

Gold

Flammability Rating

UL94 V-0

Iec Conformance

NO

Additional Feature

STAGGERED CONFIGURATION, POLARIZED

Number Of Pcb Rows

4

Filter Feature

NO

Insulation Resistance

1000000000Ohm
