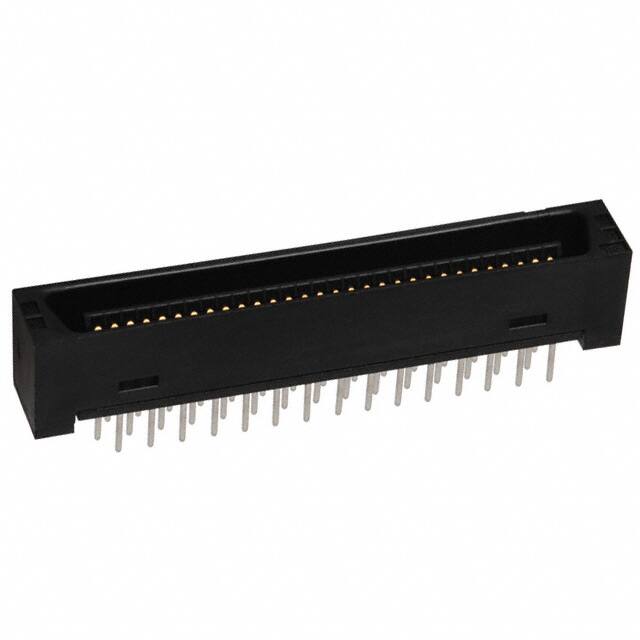

FX2CA-60P-1.27DSA

Specifications

Option

GENERAL PURPOSE

Parça Durumu

Obsolete

Termination Type

SOLDER

Mil Conformance

NO

Sıra Sayısı

2

Pcb Contact Row Spacing

1.905 mm

Dielectric Withstanding Voltage

300VAC V

Connector Type

BOARD STACKING CONNECTOR

Reliability

COMMERCIAL

Din Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Length Or Diameter

1.896 inch

Montaj Tipi

BOARD

Contact Materials

Bronze

Rated Current Signal

0.5A

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Kurşunsuz

Contains Lead

Operating Temperature Min

-55°C

Gender

Male

Length Termination

0.13 inch

Contact Plating

Gold

RoHS Durumu

Non-RoHS Compliant

Iec Conformance

NO

Flammability Rating

UL94 V-0

HTS Kodu

8536.69.40.40

Filter Feature

NO

Insulation Resistance

1000000000Ohm

Additional Feature

STAGGERED CONFIGURATION, POLARIZED

Number Of Pcb Rows

4

ECCN Kodu

EAR99

REACH Uyumluluk Kodu

unknown

Contact Resistance

45mOhm

Reference Standard

UL

Montaj Stili

STRAIGHT

Operating Temperature Max

85°C

Body Depth

0.335 inch

Housing Material

Plastic

Mixed Contacts

NO

JESD-609 Kodu

e4

Ul Flammability Code

94V-0
