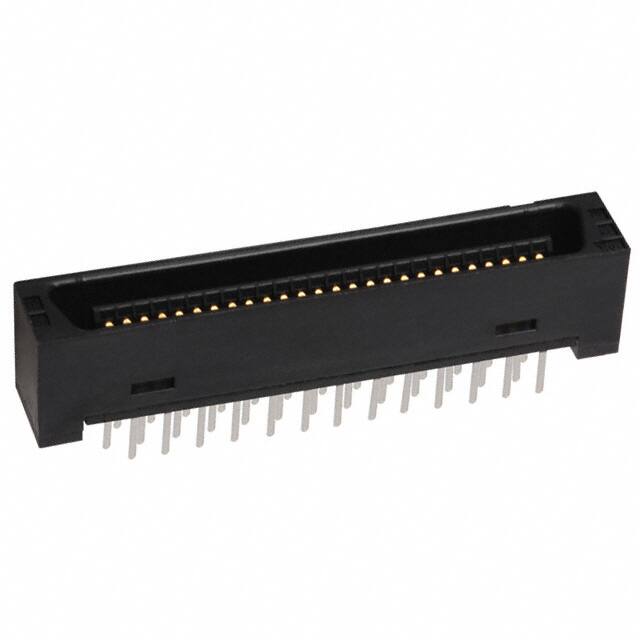

FX2CA-52P-1.27DSA

Specifications

Housing Material

Polyamide

Operating Temperature Max

85°C

Body Depth

0.335 inch

Montaj Stili

STRAIGHT

Pitch

2.54mm

Reference Standard

UL

Contact Resistance

45mOhm

REACH Uyumluluk Kodu

unknown

Bodyshell Style

RECEPTACLE

Pcb Contact Pattern

STAGGERED

Lead Pitch

1.27mm

Number Of Contacts

52

Contact Pattern

RECTANGULAR

Housing Color

Black

JESD-609 Kodu

e4

Ul Flammability Code

94V-0

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Din Conformance

NO

Connector Type

BOARD STACKING CONNECTOR

Sıra Sayısı

2

Mil Conformance

NO

Pcb Contact Row Spacing

1.905 mm

Dielectric Withstanding Voltage

300VAC V

Akım Değeri

500mA

Parça Durumu

Obsolete

Terminal

Solder

Option

GENERAL PURPOSE

Additional Feature

STAGGERED CONFIGURATION, POLARIZED

Number Of Pcb Rows

4

Insulation Resistance

1000000000Ohm

Filter Feature

NO

Voltage Rated Ac

125V

Iec Conformance

NO

Flammability Rating

UL94 V-0

RoHS Durumu

Non-RoHS Compliant

Contact Plating

Gold

Length Termination

0.13 inch

Gender

Male
