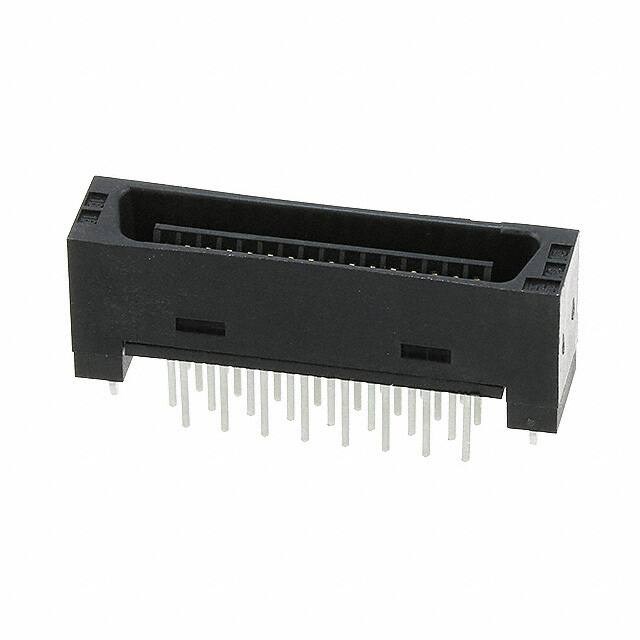

FX2CA-32P-1.27DSA

Specifications

Kurşunsuz

Contains Lead

Montaj Tipi

BOARD

Contact Materials

Bronze

Rated Current Signal

0.5A

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Body Length Or Diameter

1.196 inch

Insulation Resistance

1000000000Ohm

Filter Feature

NO

Number Of Pcb Rows

4

Additional Feature

STAGGERED CONFIGURATION, POLARIZED

Flammability Rating

UL94 V-0

Iec Conformance

NO

HTS Kodu

8536.69.40.40

Gender

Male

Length Termination

0.13 inch

Contact Plating

Gold

RoHS Durumu

Non-RoHS Compliant

Operating Temperature Min

-55°C

Dielectric Withstanding Voltage

300VAC V

Pcb Contact Row Spacing

1.905 mm

Mil Conformance

NO

Sıra Sayısı

2

Termination Type

SOLDER

Parça Durumu

Obsolete

Option

GENERAL PURPOSE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

BOARD STACKING CONNECTOR

Reliability

COMMERCIAL

Din Conformance

NO

Number Of Contacts

32

Lead Pitch

1.27mm

Contact Pattern

RECTANGULAR

Ul Flammability Code

94V-0

JESD-609 Kodu

e4

Housing Color

Black

Mixed Contacts

NO

Bodyshell Style

RECEPTACLE

Pcb Contact Pattern

STAGGERED

Mating Contact Pitch

0.05 inch

Reference Standard

UL
