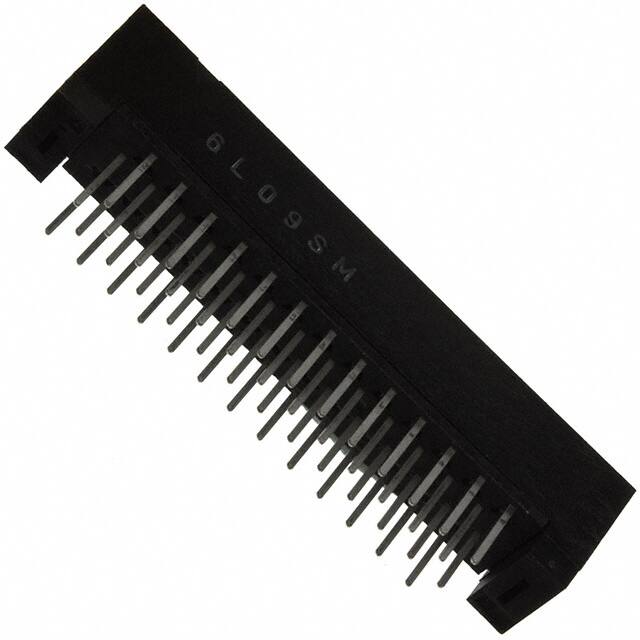

FX2CA2-52P-1.27DSA(71)

Specifications

Parça Durumu

Active

REACH Uyumluluk Kodu

unknown

Montaj Tipi

BOARD

Akım Değeri

500mA

Kurşunsuz

Lead Free

Body Length Or Diameter

1.696 inch

Connector Type

BOARD STACKING CONNECTOR

Ul Flammability Code

94V-0

Number Of Conductors

ONE

Nominal Gerilim

125V

Reach Svhc

No SVHC

Terminal

SMD/SMT

Number Of Contacts

52

Contact Pattern

RECTANGULAR

Length Termination

0.13 inch

Insulation Resistance

1GOhm

HTS Kodu

8536.69.40.40

Fabrika Tedarik Süresi

10 Weeks

Reference Standard

UL

Option

GENERAL PURPOSE

Maks. Çalışma Sıcaklığı

85°C

Number Of Pcb Rows

4

Min. Çalışma Sıcaklığı

-55°C

Gender

Male

Lead Pitch

1.27mm

Flammability Rating

UL94 V-0

Pitch

1.27mm

Plating Thickness

7.87μin

Mixed Contacts

NO

Contact Plating

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Depth

0.413 inch

Contact Materials

Brass

Pcb Contact Pattern

STAGGERED

Housing Color

Black

Row Spacing

1.95 mm

Montaj Stili

STRAIGHT

Kurşunsuz Kodu

no

RoHS Durumu

RoHS Compliant

Housing Material

Thermoplastic
