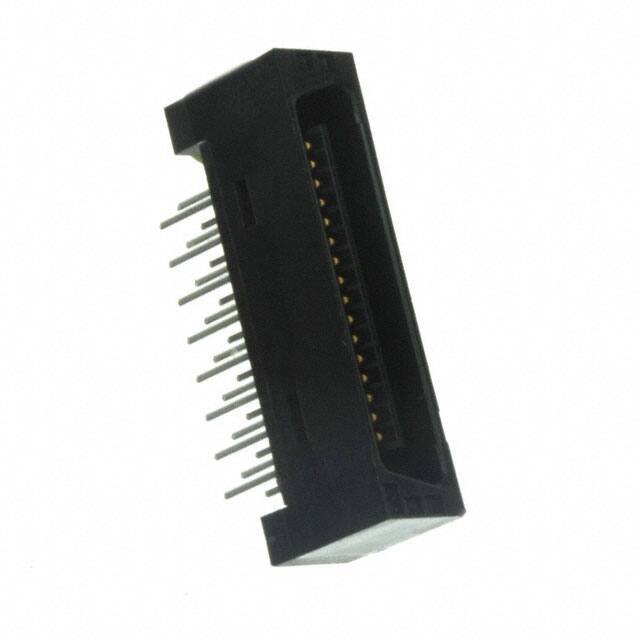

FX2CA2-32P-1.27DSA

Specifications

Contact Pattern

RECTANGULAR

Lead Pitch

1.27mm

Number Of Contacts

32

Mixed Contacts

NO

Housing Color

Black

Ul Flammability Code

94V-0

JESD-609 Kodu

e4

Pcb Contact Pattern

STAGGERED

Bodyshell Style

RECEPTACLE

Contact Resistance

45mOhm

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

Housing Material

Polyamide

Montaj Stili

STRAIGHT

Pitch

2.54mm

Body Depth

0.413 inch

Operating Temperature Max

85°C

Contact Materials

Bronze

Rated Current Signal

0.5A

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Montaj Tipi

BOARD

Kurşunsuz

Contains Lead

Body Length Or Diameter

1.196 inch

Flammability Rating

UL94 V-0

Iec Conformance

NO

Number Of Pcb Rows

4

Additional Feature

STAGGERED CONFIGURATION, POLARIZED

Insulation Resistance

1000000000Ohm

Filter Feature

NO

Voltage Rated Ac

125V

Operating Temperature Min

-55°C

RoHS Durumu

Non-RoHS Compliant

Gender

Male

Length Termination

0.13 inch

Contact Plating

Gold

Parça Durumu

Obsolete

Terminal

Solder

Akım Değeri

500mA

Dielectric Withstanding Voltage

300VAC V

Pcb Contact Row Spacing

1.905 mm
