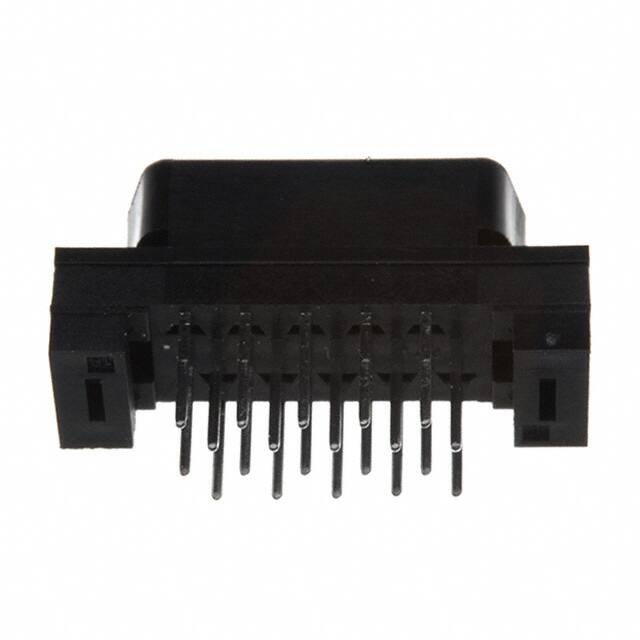

FX2CA2-20S-1.27DSA

Specifications

Pcb Contact Pattern

STAGGERED

Bodyshell Style

RECEPTACLE

Number Of Contacts

20

Mixed Contacts

NO

Ul Flammability Code

94V-0

Montaj Stili

STRAIGHT

Operating Temperature Max

85°C

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

HTS Kodu

8536.69.40.40

Number Of Pcb Rows

4

Voltage Rated Ac

125V

Filter Feature

NO

Insulation Resistance

1000000000Ohm

RoHS Durumu

Non-RoHS Compliant

Gender

Female

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Materials

Bronze

Rated Current Signal

0.5A

Montaj Tipi

BOARD

Reliability

COMMERCIAL

Mil Conformance

NO

Contact Pattern

RECTANGULAR

Lead Pitch

1.27mm

Housing Color

Black

JESD-609 Kodu

e4

Housing Material

Polyamide

Pitch

2.54mm

Contact Resistance

45mOhm

ECCN Kodu

EAR99

Flammability Rating

UL94 V-0

Iec Conformance

NO

Additional Feature

STAGGERED CONFIGURATION, POLARIZED

Operating Temperature Min

-55°C

Contact Plating

Gold

Length Termination

0.13 inch

Kurşunsuz

Contains Lead

Body Length Or Diameter

0.896 inch

Din Conformance

NO

Connector Type

BOARD STACKING CONNECTOR
