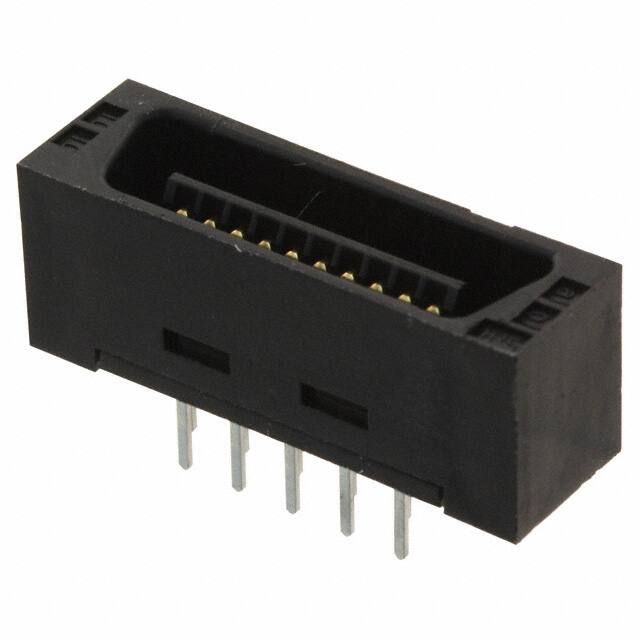

FX2CA2-20P-1.27DSA

Specifications

Operating Temperature Min

-55°C

RoHS Durumu

Non-RoHS Compliant

Gender

Male

Length Termination

0.13 inch

Contact Plating

Gold

HTS Kodu

8536.69.40.40

Iec Conformance

NO

Flammability Rating

UL94 V-0

Number Of Pcb Rows

4

Additional Feature

STAGGERED CONFIGURATION, POLARIZED

Filter Feature

NO

Insulation Resistance

1000000000Ohm

Body Length Or Diameter

0.896 inch

Contact Materials

Bronze

Rated Current Signal

0.5A

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Montaj Tipi

BOARD

Kurşunsuz

Contains Lead

Din Conformance

NO

Reliability

COMMERCIAL

Connector Type

BOARD STACKING CONNECTOR

Nem Hassasiyeti (MSL)

1 (Unlimited)

Option

GENERAL PURPOSE

Termination Type

SOLDER

Parça Durumu

Obsolete

Dielectric Withstanding Voltage

300VAC V

Pcb Contact Row Spacing

1.905 mm

Sıra Sayısı

2

Mil Conformance

NO

Mating Contact Pitch

0.05 inch

Pcb Contact Pattern

STAGGERED

Bodyshell Style

RECEPTACLE

Mixed Contacts

NO

Housing Color

Black

JESD-609 Kodu

e4

Ul Flammability Code

94V-0

Contact Pattern

RECTANGULAR

Lead Pitch

1.27mm

Number Of Contacts

20

Montaj Stili

STRAIGHT
