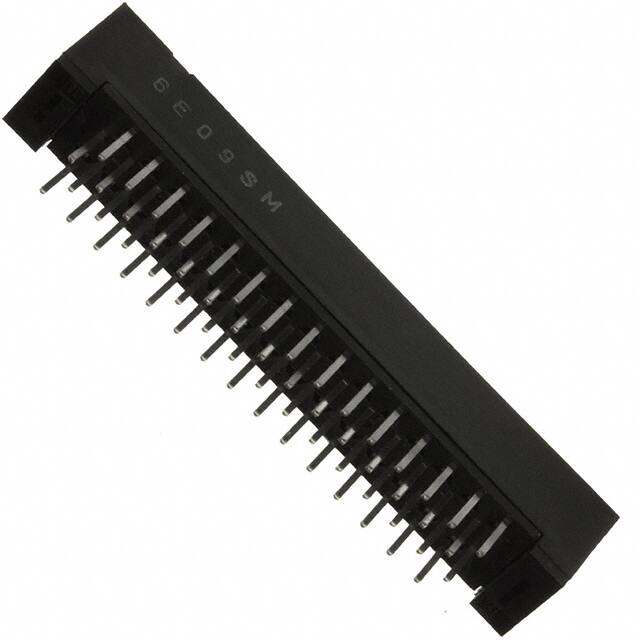

FX2CA1-60P-1.27DSA(71)

Specifications

Operating Temperature Max

85°C

Montaj Stili

STRAIGHT

Reference Standard

UL

REACH Uyumluluk Kodu

unknown

Pcb Contact Pattern

STAGGERED

Mating Contact Pitch

0.05 inch

Kurşunsuz Kodu

no

Number Of Contacts

60

Ul Flammability Code

94V-0

Mixed Contacts

NO

Reliability

COMMERCIAL

Mil Conformance

NO

Termination Type

SOLDER

Insulation Resistance

1000000000Ohm

Filter Feature

NO

Number Of Pcb Rows

4

HTS Kodu

8536.69.40.40

Fabrika Tedarik Süresi

10 Weeks

Gender

Male

Mounting Option1

LOCKING

RoHS Durumu

RoHS Compliant

Montaj Tipi

BOARD

Rated Current Signal

0.5A

Contact Materials

Bronze

Housing Material

Plastic

Body Depth

0.374 inch

Number Of Conductors

ONE

Contact Resistance

45mOhm

ECCN Kodu

EAR99

Polarization Key

POLARIZED HOUSING

Lead Pitch

1.27mm

Contact Pattern

RECTANGULAR

Housing Color

Black

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

BOARD STACKING CONNECTOR

Din Conformance

NO

Contact Finish Mating

NOT SPECIFIED

Contact Style

CENTRONIC

Sıra Sayısı

2

Pcb Contact Row Spacing

1.905 mm
