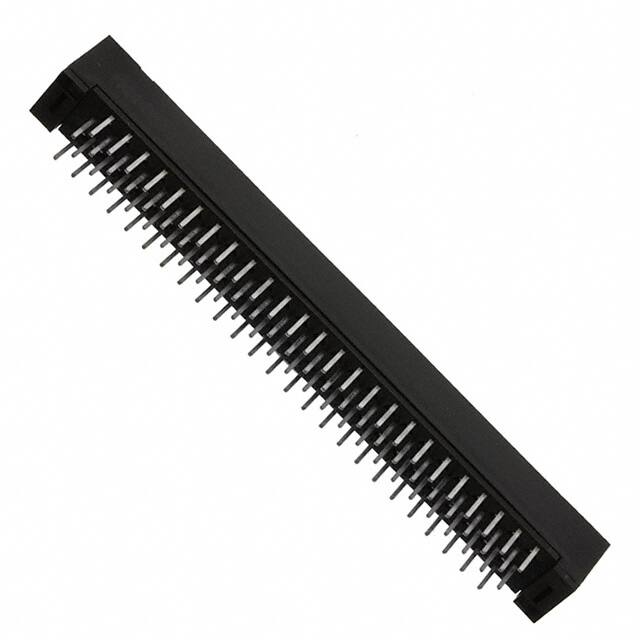

FX2CA1-100P-1.27DSA(71)

Specifications

Durability

500 Cycles

Contact Plating

Gold

Length Termination

0.13 inch

Min. Çalışma Sıcaklığı

-55°C

Iec Conformance

NO

Flammability Rating

UL94 V-0

Kurşunsuz

Lead Free

Din Conformance

NO

Connector Type

BOARD STACKING CONNECTOR

Nem Hassasiyeti (MSL)

1 (Unlimited)

Option

GENERAL PURPOSE

Terminal

SMD/SMT

Parça Durumu

Active

Contact Style

CENTRONIC

Sıra Sayısı

2

Pcb Contact Row Spacing

1.905 mm

Dielectric Withstanding Voltage

300VAC V

Akım Değeri

500mA

Polarization Key

POLARIZED HOUSING

Housing Color

Black

JESD-609 Kodu

e4

Contact Pattern

RECTANGULAR

Lead Pitch

1.27mm

Pitch

1.27mm

Body Depth

0.374 inch

Maks. Çalışma Sıcaklığı

85°C

Housing Material

Thermoplastic

ECCN Kodu

EAR99

Contact Resistance

45mOhm

Number Of Conductors

ONE

RoHS Durumu

RoHS Compliant

Mounting Option1

LOCKING

Gender

Male

Fabrika Tedarik Süresi

10 Weeks

HTS Kodu

8536.69.40.40

Number Of Pcb Rows

4

Filter Feature

NO

Insulation Resistance

1GOhm

Contact Materials

Bronze

Rated Current Signal

0.5A
