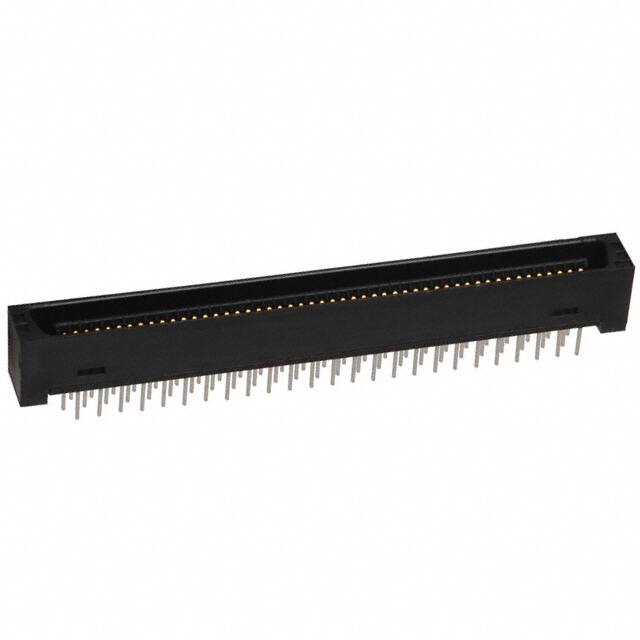

FX2CA-100P-1.27DSA

Specifications

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Rated Current Signal

0.5A

Contact Materials

Bronze

Montaj Tipi

BOARD

Kurşunsuz

Contains Lead

HTS Kodu

8536.69.40.40

Flammability Rating

UL94 V-0

Iec Conformance

NO

Number Of Pcb Rows

4

Additional Feature

STAGGERED CONFIGURATION, POLARIZED

Filter Feature

NO

Voltage Rated Ac

125V

Operating Temperature Min

-55°C

RoHS Durumu

Non-RoHS Compliant

Gender

Male

Length Termination

0.13 inch

Contact Plating

Gold

Terminal

Solder

Parça Durumu

Obsolete

Akım Değeri

500mA

Dielectric Withstanding Voltage

300VAC V

Pcb Contact Row Spacing

1.905 mm

Mil Conformance

NO

Sıra Sayısı

2

Option

GENERAL PURPOSE

Din Conformance

NO

Reliability

COMMERCIAL

Connector Type

BOARD STACKING CONNECTOR

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Pattern

RECTANGULAR

Lead Pitch

1.27mm

Number Of Contacts

100

Mixed Contacts

NO

Housing Color

Black

Ul Flammability Code

94V-0

JESD-609 Kodu

e4

Pcb Contact Pattern

STAGGERED

Bodyshell Style

RECEPTACLE

Contact Resistance

45mOhm

REACH Uyumluluk Kodu

unknown
