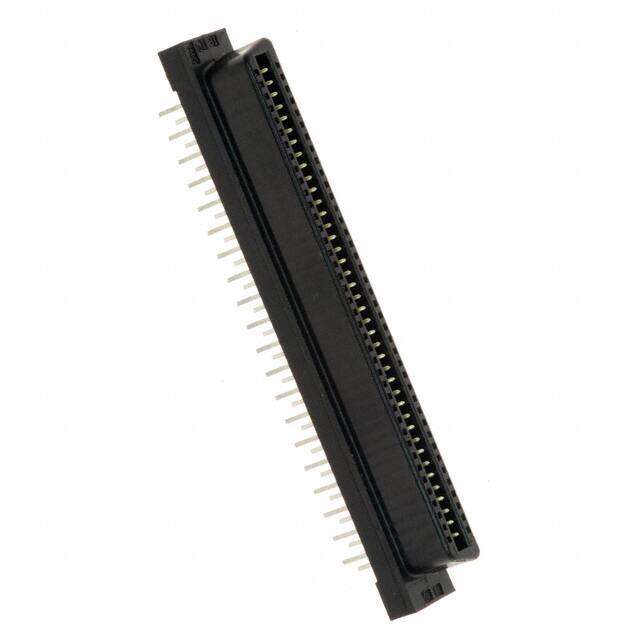

Specifications
- Reference Standard
- UL
- REACH Uyumluluk Kodu
- unknown
- Contact Resistance
- 45mOhm
- Housing Material
- PBT
- Operating Temperature Max
- 85°C
- Body Depth
- 0.138 inch
- Pitch
- 1.27mm
- Montaj Stili
- STRAIGHT
- Total Number Of Contacts
- 80
- Contact Pattern
- STAGGERED
- Ul Flammability Code
- 94V-0
- Insulator Color
- BLACK
- Mixed Contacts
- NO
- Bodyshell Style
- RECEPTACLE
- Pcb Contact Pattern
- STAGGERED
- Kurşunsuz Kodu
- no
- Contact Finish Mating
- NOT SPECIFIED
- Pozisyon Sayısı
- 80
- Akım Değeri
- 500mA
- Sıra Sayısı
- 2
- Mil Conformance
- NO
- Dielectric Withstanding Voltage
- 300VAC V
- Parça Durumu
- Active
- Terminal
- Through Hole
- Option
- GENERAL PURPOSE
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Connector Type
- BOARD STACKING CONNECTOR
- Contact Gender
- FEMALE
- Din Conformance
- NO
- Reliability
- COMMERCIAL
- Nominal Gerilim
- 125V
- Montaj Tipi
- BOARD
- Contact Materials
- Bronze
- Rated Current Signal
- 0.5A
- Body Breadth
- 0.276 inch
- Body Length Or Diameter
- 2.396 inch
- Insulation Resistance
- 1000000000Ohm
- Filter Feature
- NO
- Number Of Pcb Rows
- 4
- Iec Conformance
- NO
