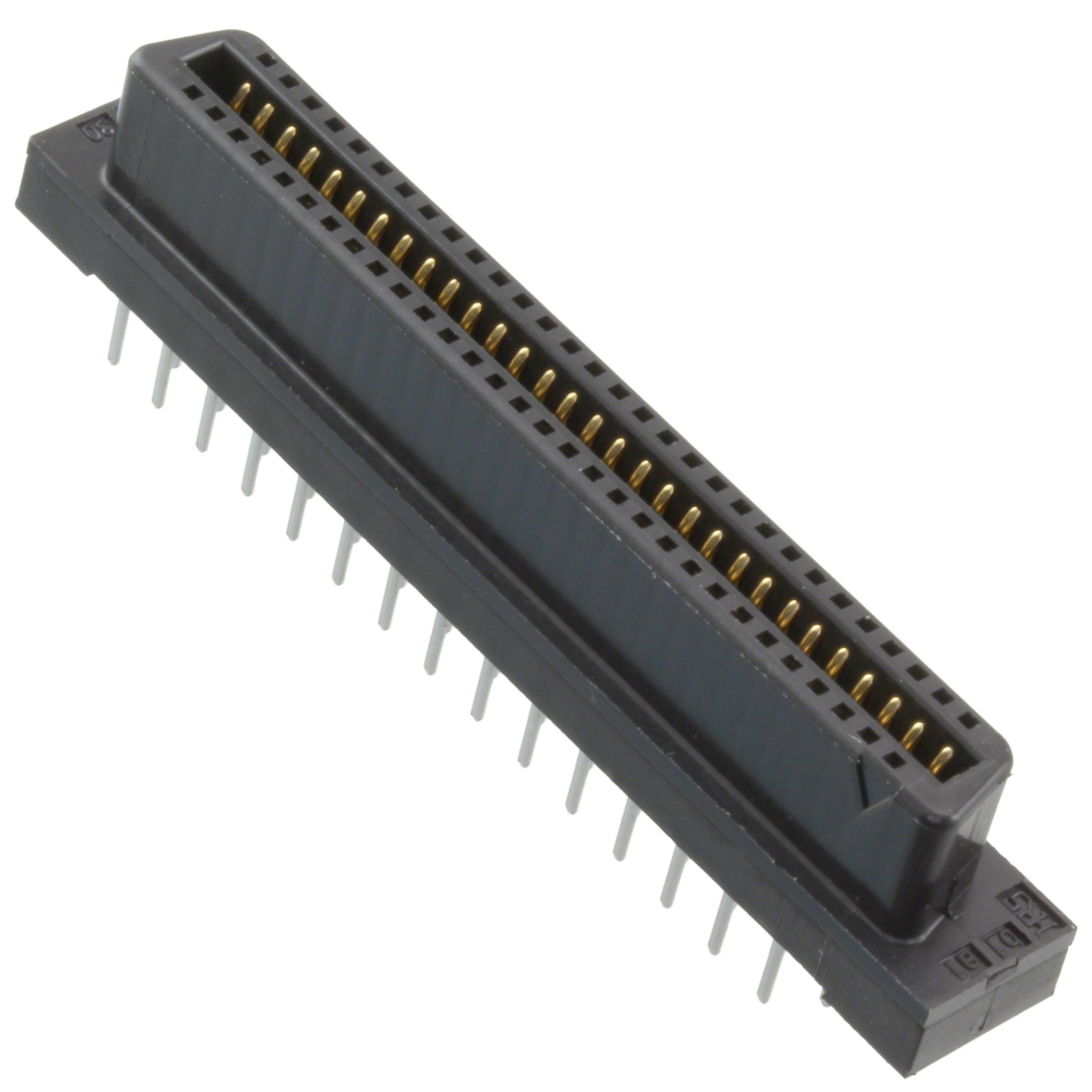

FX2C-60S-1.27DSAL(71)

Specifications

Din Conformance

NO

Reliability

COMMERCIAL

Connector Type

Receptacle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Through Hole

Parça Durumu

Active

Akım Değeri

500mA

Dielectric Withstanding Voltage

300VAC V

Sıra Sayısı

2

Montaj

Through Hole

Mil Conformance

NO

Option

GENERAL PURPOSE

Min. Çalışma Sıcaklığı

-55°C

Fabrika Tedarik Süresi

10 Weeks

HTS Kodu

8536.69.40.40

Iec Conformance

NO

Number Of Pcb Rows

4

Insulation Resistance

1GOhm

Filter Feature

NO

Stack Height Mating

14mm

RoHS Durumu

RoHS Compliant

Gender

Female

Length Termination

0.118 inch

Contact Plating

Gold

Rated Current Signal

0.5A

Contact Materials

Bronze

Nominal Gerilim

125V

Body Length Or Diameter

1.896 inch

Maks. Çalışma Sıcaklığı

85°C

Housing Material

PBT

Pitch

1.27mm

Body Depth

0.138 inch

Contact Resistance

45mOhm

Reference Standard

UL

ECCN Kodu

EAR99

Pcb Contact Pattern

STAGGERED

Kurşunsuz Kodu

no

Contact Pattern

STAGGERED

Number Of Contacts

60

Mixed Contacts

NO
