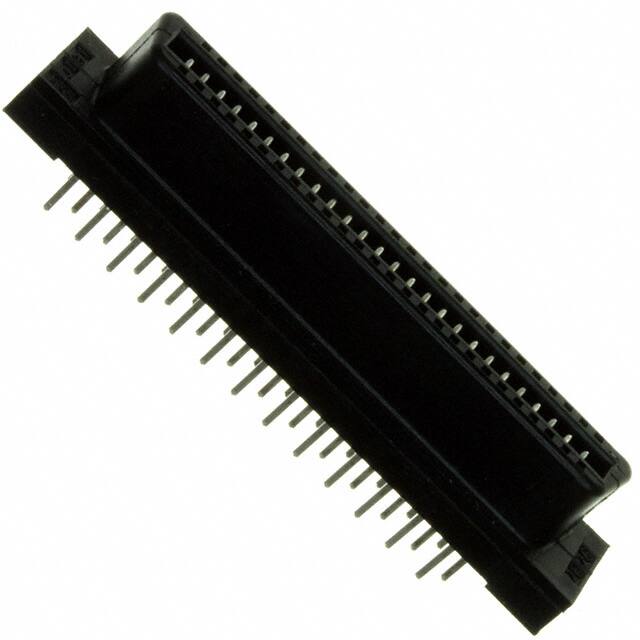

FX2C-52S-1.27DSAL(71)

Specifications

ECCN Kodu

EAR99

Reference Standard

UL

Contact Resistance

45mOhm

REACH Uyumluluk Kodu

unknown

Body Depth

0.138 inch

Operating Temperature Max

85°C

Pitch

1.27mm

Ul Flammability Code

94V-0

Insulator Color

BLACK

Mixed Contacts

NO

Contact Pattern

STAGGERED

Total Number Of Contacts

52

Kurşunsuz Kodu

no

Pcb Contact Pattern

STAGGERED

Option

GENERAL PURPOSE

Sıra Sayısı

2

Montaj

Through Hole

Mil Conformance

NO

Dielectric Withstanding Voltage

300VAC V

Pozisyon Sayısı

52

Contact Finish Mating

NOT SPECIFIED

Parça Durumu

Active

Termination Type

SOLDER

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Din Conformance

NO

Contact Gender

FEMALE

Connector Type

Receptacle

Body Length Or Diameter

1.696 inch

Kurşunsuz

Lead Free

Rated Current Signal

0.5A

Contact Materials

NOT SPECIFIED

RoHS Durumu

RoHS Compliant

Length Termination

0.118 inch

Contact Plating

Gold

Operating Temperature Min

-55°C

Stack Height Mating

14mm

Number Of Pcb Rows

4

Insulation Resistance

1000000000Ohm

Filter Feature

NO
