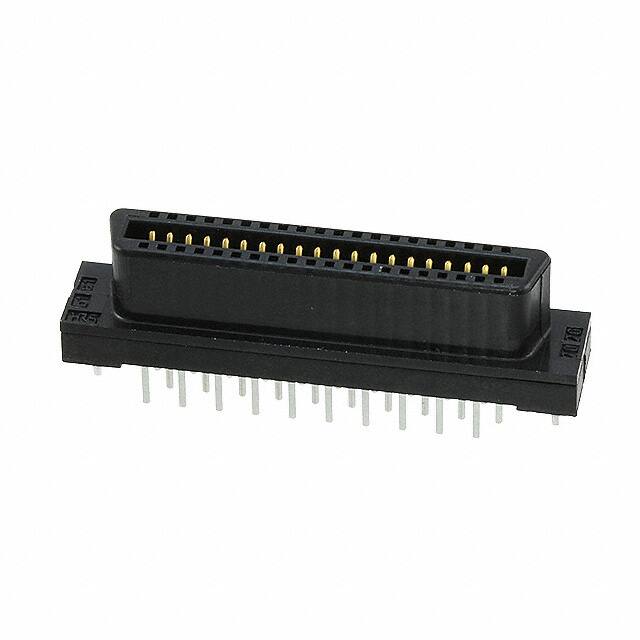

FX2C-40S-1.27DSA(71)

Specifications

Housing Material

PBT

Maks. Çalışma Sıcaklığı

85°C

Body Depth

0.138 inch

Pitch

1.27mm

Orientation

Straight

Reference Standard

UL

REACH Uyumluluk Kodu

unknown

Contact Resistance

45mOhm

Bodyshell Style

RECEPTACLE

Pcb Contact Pattern

STAGGERED

Number Of Contacts

40

Lead Pitch

1.27mm

Contact Pattern

STAGGERED

Ul Flammability Code

94V-0

JESD-609 Kodu

e4

Housing Color

Black

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

BOARD STACKING CONNECTOR

Reliability

COMMERCIAL

Din Conformance

NO

Akım Değeri

500mA

Dielectric Withstanding Voltage

300VAC V

Mil Conformance

NO

Montaj

Through Hole

Sıra Sayısı

2

Parça Durumu

Active

Terminal

Through Hole

Option

GENERAL PURPOSE

Filter Feature

NO

Insulation Resistance

1GOhm

Number Of Pcb Rows

4

Flammability Rating

UL94 V-0

Iec Conformance

NO

Min. Çalışma Sıcaklığı

-55°C

Fabrika Tedarik Süresi

10 Weeks

Contact Plating

Gold

Length Termination

0.118 inch

Gender

Female

RoHS Durumu

RoHS Compliant
