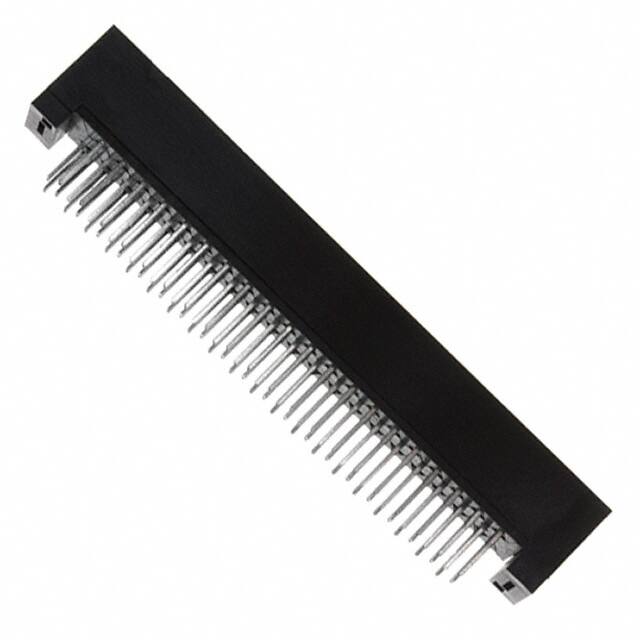

FX2C2-80P-1.27DSA

Specifications

Contact Pattern

RECTANGULAR

Number Of Contacts

80

Lead Pitch

1.27mm

Mixed Contacts

NO

Ul Flammability Code

94V-0

JESD-609 Kodu

e4

Housing Color

Black

Pcb Contact Pattern

STAGGERED

Bodyshell Style

RECEPTACLE

REACH Uyumluluk Kodu

unknown

Contact Resistance

45mOhm

Reference Standard

UL

ECCN Kodu

EAR99

Housing Material

Polyamide

Pitch

2.54mm

Montaj Stili

STRAIGHT

Body Depth

0.413 inch

Operating Temperature Max

85°C

Montaj Tipi

BOARD

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Rated Current Signal

0.5A

Contact Materials

Bronze

Kurşunsuz

Contains Lead

Iec Conformance

NO

Flammability Rating

UL94 V-0

HTS Kodu

8536.69.40.40

Voltage Rated Ac

125V

Filter Feature

NO

Insulation Resistance

1000000000Ohm

Number Of Pcb Rows

4

Additional Feature

STAGGERED CONFIGURATION, POLARIZED

Operating Temperature Min

-55°C

Gender

Male

Length Termination

0.13 inch

Contact Plating

Gold

RoHS Durumu

Non-RoHS Compliant

Parça Durumu

Obsolete

Terminal

Solder

Akım Değeri

500mA

Dielectric Withstanding Voltage

300VAC V
