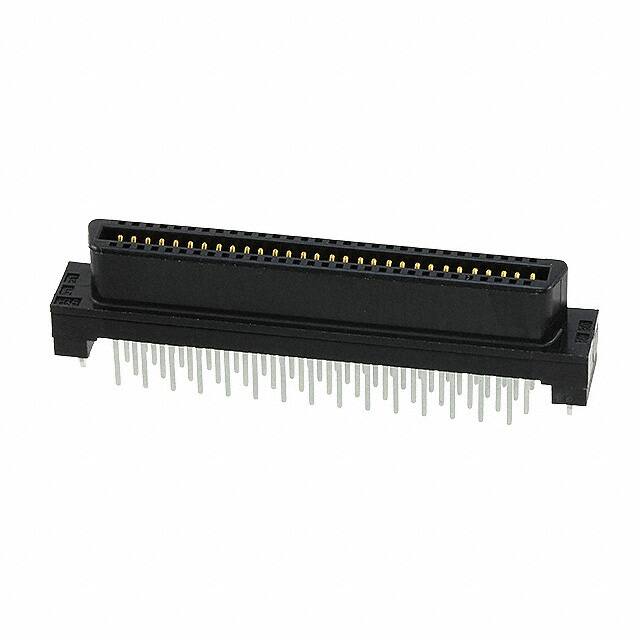

FX2C2-60S-1.27DSA(71)

Specifications

Polarization Key

POLARIZED HOUSING

Contact Pattern

RECTANGULAR

Lead Pitch

1.27mm

Housing Color

Black

Housing Material

Plastic

Body Depth

0.453 inch

Contact Resistance

45mOhm

Number Of Conductors

ONE

Iec Conformance

NO

Flammability Rating

UL94 V-0

Operating Temperature Min

-55°C

Durability

500 Cycles

Length Termination

0.13 inch

Contact Plating

Gold

Kurşunsuz

Lead Free

Body Length Or Diameter

1.896 inch

Din Conformance

NO

Connector Type

BOARD STACKING CONNECTOR

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Contact Style

BELLOWED TYPE

Sıra Sayısı

2

Pcb Contact Row Spacing

1.905 mm

Dielectric Withstanding Voltage

300VAC V

Contact Finish Mating

NOT SPECIFIED

Option

GENERAL PURPOSE

Pcb Contact Pattern

STAGGERED

Bodyshell Style

RECEPTACLE

Kurşunsuz Kodu

no

Mating Contact Pitch

0.05 inch

Number Of Contacts

60

Mixed Contacts

NO

Ul Flammability Code

94V-0

Montaj Stili

STRAIGHT

Operating Temperature Max

85°C

REACH Uyumluluk Kodu

unknown

Reference Standard

UL

Fabrika Tedarik Süresi

10 Weeks

Number Of Pcb Rows

4

Insulation Resistance

1000000000Ohm
