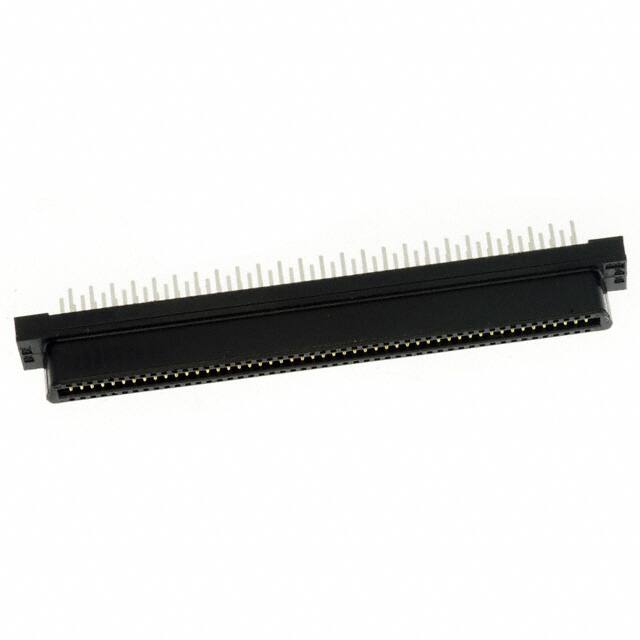

FX2C-100S-1.27DSAL(71)

Specifications

Pitch

1.27mm

Operating Temperature Max

85°C

Body Depth

0.138 inch

REACH Uyumluluk Kodu

unknown

Contact Resistance

45mOhm

Reference Standard

UL

ECCN Kodu

EAR99

Pcb Contact Pattern

STAGGERED

Insulation Materials

POLYAMIDE

Kurşunsuz Kodu

no

Total Number Of Contacts

100

Contact Pattern

STAGGERED

Insulator Color

BLACK

Mixed Contacts

NO

Ul Flammability Code

94V-0

Connector Type

Receptacle

Din Conformance

NO

Contact Gender

FEMALE

Reliability

COMMERCIAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Termination Type

SOLDER

Parça Durumu

Active

Pozisyon Sayısı

100

Contact Finish Mating

NOT SPECIFIED

Dielectric Withstanding Voltage

300VAC V

Sıra Sayısı

2

Montaj

Through Hole

Mil Conformance

NO

Option

GENERAL PURPOSE

Iec Conformance

NO

HTS Kodu

8536.69.40.40

Fabrika Tedarik Süresi

10 Weeks

Filter Feature

NO

Number Of Pcb Rows

4

Stack Height Mating

14mm

Operating Temperature Min

-55°C

Contact Plating

Gold

Length Termination

0.118 inch

RoHS Durumu

RoHS Compliant

Contact Materials

NOT SPECIFIED
