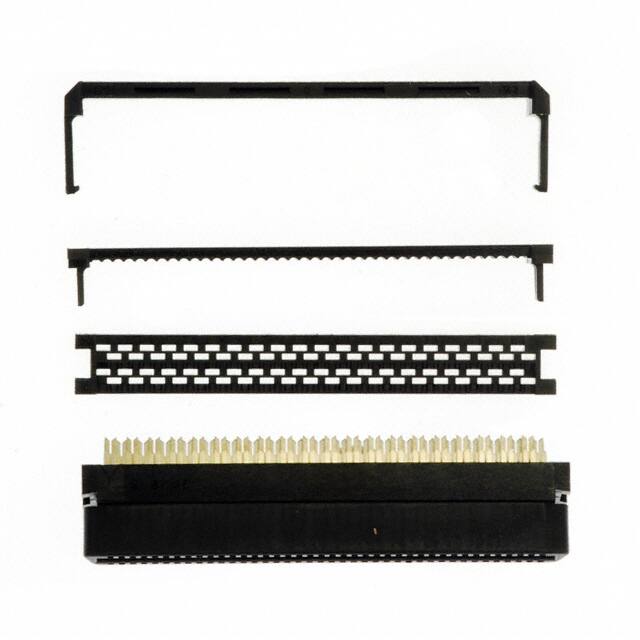

Specifications
- Pitch
- 1.27mm
- Dielectric Withstanding Voltage
- 300VAC V
- Contact Design
- PREASSEM CONN
- Housing Material
- PBT
- Parça Durumu
- Active
- Number Of Contacts
- 80
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Sıra Sayısı
- 2
- Option
- GENERAL PURPOSE
- Contact Pattern
- RECTANGULAR
- Radyasyon Dayanımı
- No
- Fabrika Tedarik Süresi
- 10 Weeks
- Operating Temperature Max
- 85°C
- Iec Conformance
- NO
- Renk
- Black
- Kurşunsuz
- Lead Free
- Ul Flammability Code
- 94V-0
- RoHS Durumu
- RoHS Compliant
- Contact Gender
- FEMALE
- Reference Standard
- UL
- Kurşunsuz Kodu
- yes
- Operating Temperature Min
- -55°C
- Wirecable Type
- Ribbon
- Reliability
- COMMERCIAL
- JESD-609 Kodu
- e4
- Contact Plating
- Gold
- Din Conformance
- NO
- Connector Type
- IDC, Receptacle, Socket
- Mil Conformance
- NO
- Mating Information
- MULTIPLE MATING PARTS AVAILABLE
- Akım Değeri
- 500mA
- Rated Current Signal
- 0.5A
- Insulation Resistance
- 1000000000Ohm
- Nominal Gerilim
- 125V
- Wirecable Gauge
- 28 AWG
- Body Depth
- 0.516 inch
- Terminal
- IDT
- Flammability Rating
- UL94 V-0
- Lead Pitch
- 1.27mm
- Additional Feature
- UNLOCK CABLE TYPE
