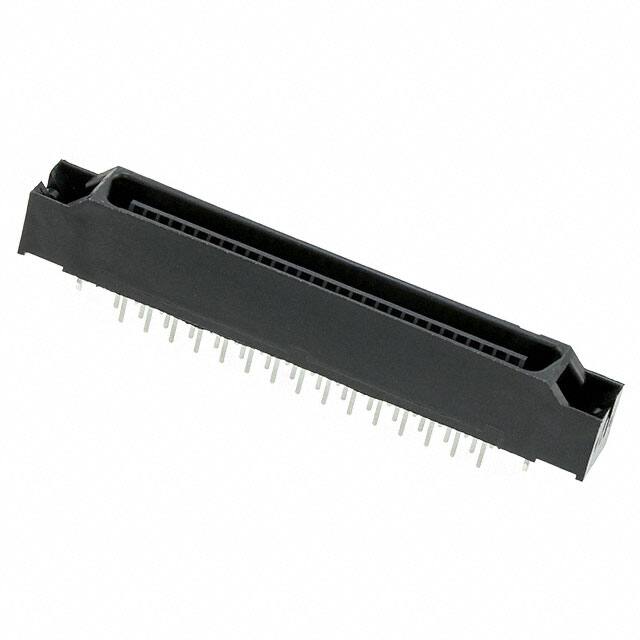

FX2BA-60PA-1.27DSA

Specifications

Operating Temperature Min

-55°C

Genişlik

7mm

Reference Standard

UL

Reliability

COMMERCIAL

Din Conformance

NO

Contact Plating

Gold

Number Of Pcb Rows

4

JESD-609 Kodu

e4

Pcb Contact Pattern

STAGGERED

Connector Type

BOARD CONNECTOR

Mil Conformance

NO

Montaj Tipi

BOARD

Rated Current Signal

0.5A

Insulation Resistance

1000000000Ohm

Gender

Male

Body Depth

0.335 inch

Flammability Rating

UL94 V-0

Additional Feature

POLARIZED, STAGGERED CONFIGURATION

Lead Pitch

1.27mm

Mixed Contacts

NO

Termination Type

SOLDER

Filter Feature

NO

Contact Resistance

45mOhm

Contact Materials

Brass

Mounting Option1

LOCKING MECH

Housing Material

Plastic

Mating Contact Pitch

0.05 inch

Dielectric Withstanding Voltage

300VAC V

Number Of Contacts

60

Sıra Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Obsolete

Pcb Contact Row Spacing

1.905 mm

Option

GENERAL PURPOSE

Housing Color

Black

Yükseklik

8.5mm

Contact Pattern

RECTANGULAR

Operating Temperature Max

85°C

Iec Conformance

NO

Uzunluk

55.7mm
