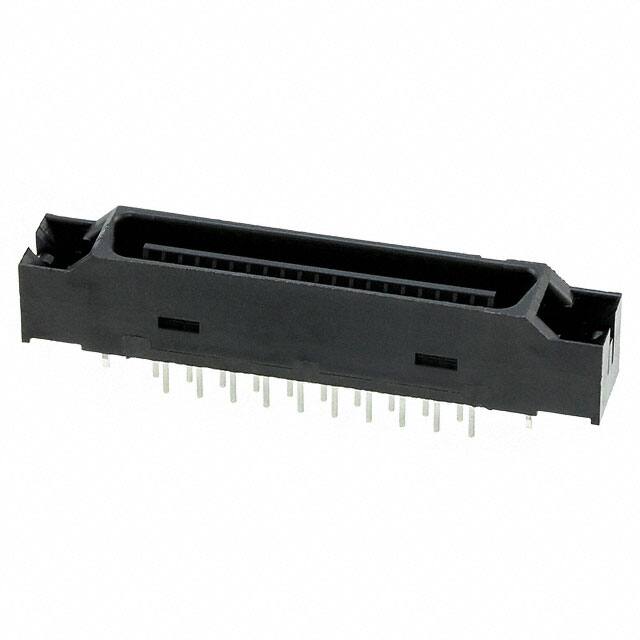

FX2BA-40PA-1.27DSA

Specifications

Reliability

COMMERCIAL

Operating Temperature Min

-55°C

Reference Standard

UL

Connector Type

BOARD CONNECTOR

Pcb Contact Pattern

STAGGERED

Number Of Pcb Rows

4

Contact Plating

Gold

Din Conformance

NO

Montaj Tipi

BOARD

Mil Conformance

NO

Rated Current Signal

0.5A

Insulation Resistance

1000000000Ohm

Gender

Male

Body Depth

0.335 inch

Length Termination

0.13 inch

Additional Feature

POLARIZED, STAGGERED CONFIGURATION

Lead Pitch

1.27mm

Flammability Rating

UL94 V-0

Termination Type

SOLDER

Contact Finish Mating

NOT SPECIFIED

Mixed Contacts

NO

Contact Resistance

45mOhm

Contact Materials

Brass

Mounting Option1

LOCKING MECH

Filter Feature

NO

Parça Durumu

Obsolete

Number Of Contacts

40

Sıra Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Contact Pitch

0.05 inch

Dielectric Withstanding Voltage

300VAC V

Housing Material

Plastic

Housing Color

Black

Pcb Contact Row Spacing

1.905 mm

Option

GENERAL PURPOSE

Contact Pattern

RECTANGULAR

Operating Temperature Max

85°C

Iec Conformance

NO

Body Length Or Diameter

1.694 inch

Ul Flammability Code

94V-0
