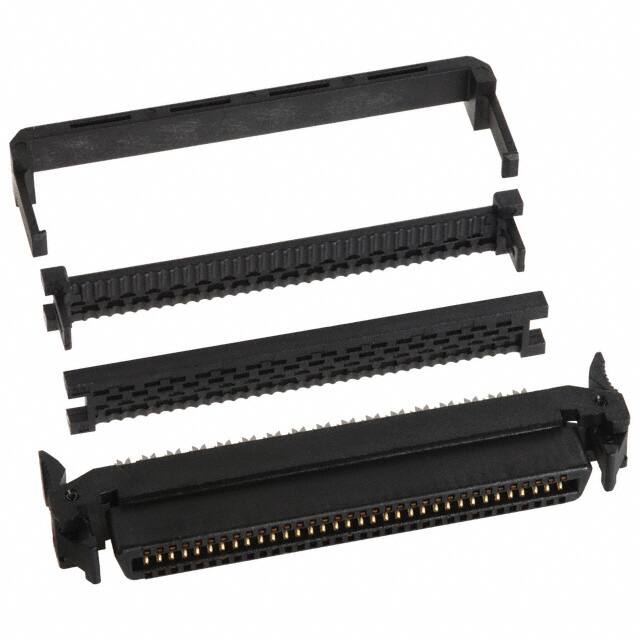

FX2B-68SA-1.27R

Specifications

Fabrika Tedarik Süresi

10 Weeks

ECCN Kodu

EAR99

Iec Conformance

NO

Ul Flammability Code

94V-0

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Pitch

1.27mm

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Contacts

68

Dielectric Withstanding Voltage

300VAC V

Housing Material

PBT

Contact Pattern

RECTANGULAR

Wirecable Gauge

28 AWG

Terminal

IDT

Lead Pitch

1.27mm

Fastening Type

Latch

Flammability Rating

UL94 V-0

Montaj

Free Hanging

Contact Finish Mating

MATTE TIN

Mixed Contacts

NO

Contact Materials

Bronze

Kurşunsuz Kodu

yes

Operating Temperature Min

-55°C

Wirecable Type

Ribbon

Connector Type

IDC, Receptacle, Socket

JESD-609 Kodu

e3

Din Conformance

NO

Mil Conformance

NO

Akım Değeri

500mA

Rated Current Signal

0.5A

Insulation Resistance

1000000000Ohm

Nominal Gerilim

125V

Radyasyon Dayanımı

No

Operating Temperature Max

85°C

Renk

Black

Sıra Sayısı

2

Contact Design

PREASSEM CONN

Option

GENERAL PURPOSE

Body Depth

0.515 inch
