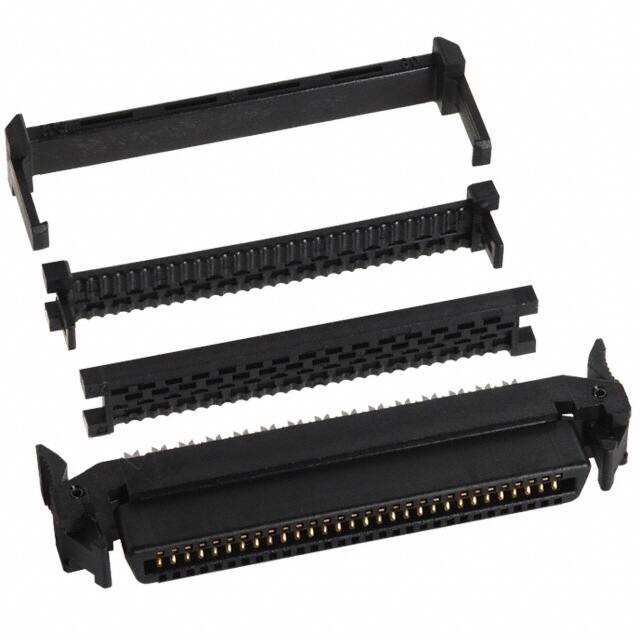

FX2B-60SA-1.27R

Specifications

Dielectric Withstanding Voltage

300VAC V

Stack Height

16mm

Housing Material

Polyamide

Parça Durumu

Active

Number Of Contacts

60

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pitch

1.27mm

Contact Pattern

RECTANGULAR

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

10 Weeks

REACH Uyumluluk Kodu

unknown

Kurşunsuz

Lead Free

Ul Flammability Code

94V-0

RoHS Durumu

RoHS Compliant

Iec Conformance

NO

JESD-609 Kodu

e4

Din Conformance

NO

Connector Type

IDC, Receptacle, Socket

Kurşunsuz Kodu

yes

Wirecable Type

Ribbon

Insulation Resistance

1GOhm

Rated Current Signal

0.5A

Akım Değeri

500mA

Nominal Gerilim

125V

Mil Conformance

NO

Flammability Rating

UL94 V-0

Fastening Type

Latch

Lead Pitch

1.27mm

Wirecable Gauge

28 AWG

Terminal

IDC

Contact Materials

Bronze

Mixed Contacts

NO

Montaj

Free Hanging

Contact Design

PREASSEM CONN

Sıra Sayısı

2

Option

GENERAL PURPOSE

Contact Gender

FEMALE

Renk

Black

Contact Plating

Gold

Reference Standard

UL
