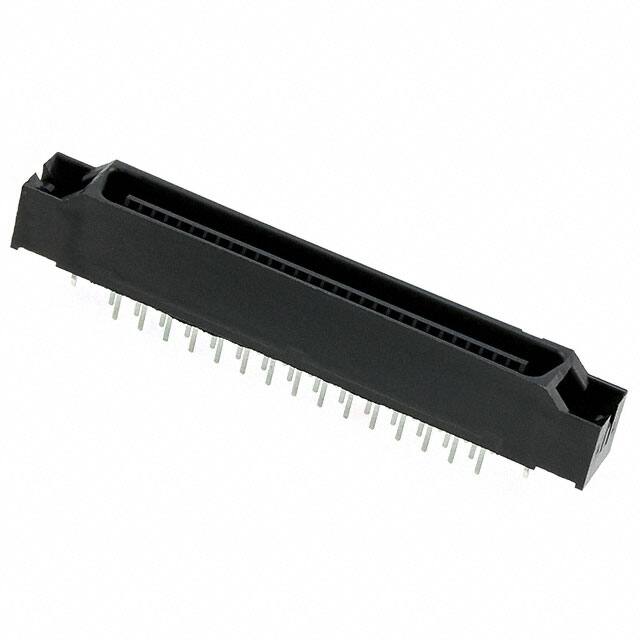

FX2B-60P-1.27DSL(71)

Specifications

Operating Temperature Min

-55°C

Reference Standard

UL

Reliability

COMMERCIAL

Number Of Pcb Rows

4

Pcb Contact Pattern

STAGGERED

Connector Type

BOARD STACKING CONNECTOR

Total Number Of Contacts

60

Montaj Tipi

BOARD

Rated Current Signal

0.5A

Insulation Resistance

1000000000Ohm

Durability

500 Cycles

HTS Kodu

8536.69.40.40

Body Depth

0.591 inch

Length Termination

0.13 inch

Polarization Key

POLARIZED HOUSING

Contact Finish Mating

AU

Contact Style

CENTRONIC

Termination Type

SOLDER

Insulator Color

BLACK

Insulation Materials

POLYAMIDE

Contact Resistance

45mOhm

Mounting Option1

LOCKING

Dielectric Withstanding Voltage

300VAC V

Mating Contact Pitch

0.05 inch

Sıra Sayısı

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal Adımı

2.54mm

Parça Durumu

Active

Pcb Contact Row Spacing

1.905 mm

Body Breadth

0.295 inch

Contact Pattern

RECTANGULAR

Pin Sayısı

60

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

10 Weeks

Operating Temperature Max

85°C

Board Mounting Option

SOLDERABLE RETENTION CLIPS

Body Length Or Diameter

1.896 inch

REACH Uyumluluk Kodu

unknown

Montaj Stili

RIGHT ANGLE

RoHS Durumu

RoHS Compliant
