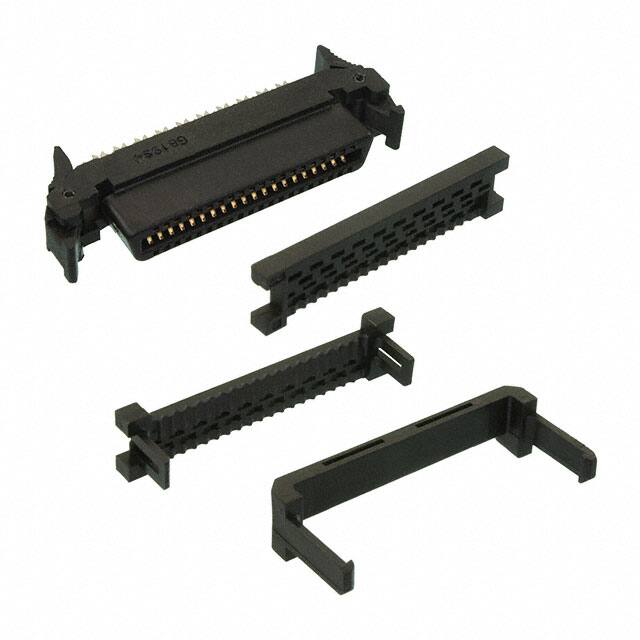

FX2B-40SA-1.27R

Specifications

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Contacts

40

Parça Durumu

Active

Housing Material

PBT

Dielectric Withstanding Voltage

300VAC V

Pitch

1.27mm

Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

10 Weeks

ECCN Kodu

EAR99

RoHS Durumu

RoHS Compliant

Ul Flammability Code

94V-0

REACH Uyumluluk Kodu

unknown

Kurşunsuz

Lead Free

Iec Conformance

NO

Body Length Or Diameter

1.596 inch

Connector Type

IDC, Receptacle, Socket

Din Conformance

NO

JESD-609 Kodu

e3

Wirecable Type

Ribbon

Kurşunsuz Kodu

yes

Operating Temperature Min

-55°C

Nominal Gerilim

125V

Insulation Resistance

1000000000Ohm

Rated Current Signal

0.5A

Akım Değeri

500mA

Mil Conformance

NO

Fastening Type

Latch

Lead Pitch

1.27mm

Flammability Rating

UL94 V-0

Terminal

IDC

Wirecable Gauge

28 AWG

Contact Materials

Bronze

Contact Finish Mating

MATTE TIN

Montaj

Free Hanging

Mixed Contacts

NO

Sıra Sayısı

2

Contact Design

PREASSEM CONN

Option

GENERAL PURPOSE

Operating Temperature Max

85°C

Contact Gender

FEMALE
