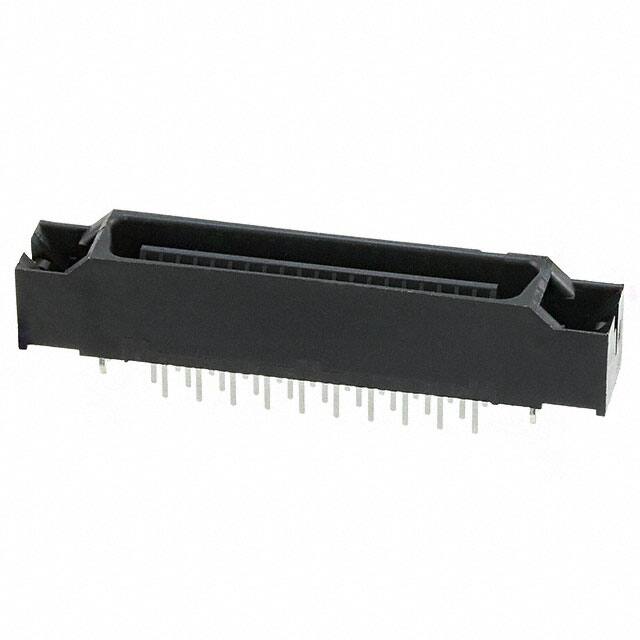

FX2B-40PA-1.27DS

Specifications

Operating Temperature Max

85°C

Montaj Stili

RIGHT ANGLE

Bodyshell Style

RECEPTACLE

RoHS Durumu

Non-RoHS Compliant

Ul Flammability Code

94V-0

Kurşunsuz

Contains Lead

REACH Uyumluluk Kodu

unknown

Body Length Or Diameter

1.694 inch

Iec Conformance

NO

Number Of Contacts

40

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

2

Parça Durumu

Obsolete

Housing Material

Plastic

Dielectric Withstanding Voltage

300VAC V

Mating Contact Pitch

0.05 inch

Contact Pattern

RECTANGULAR

Housing Color

Black

Pcb Contact Row Spacing

1.905 mm

Option

GENERAL PURPOSE

Lead Pitch

1.27mm

Additional Feature

POLARIZED, STAGGERED CONFIGURATION

Length Termination

0.13 inch

Flammability Rating

UL94 V-0

Body Depth

0.591 inch

Gender

Male

Filter Feature

NO

Contact Materials

Brass

Mounting Option1

LOCKING MECH

Contact Resistance

45mOhm

Contact Finish Mating

NOT SPECIFIED

Termination Type

SOLDER

Mixed Contacts

NO

Connector Type

BOARD STACKING CONNECTOR

Pcb Contact Pattern

STAGGERED

Contact Plating

Gold

Din Conformance

NO

Number Of Pcb Rows

4

Reliability

COMMERCIAL

Reference Standard

UL
